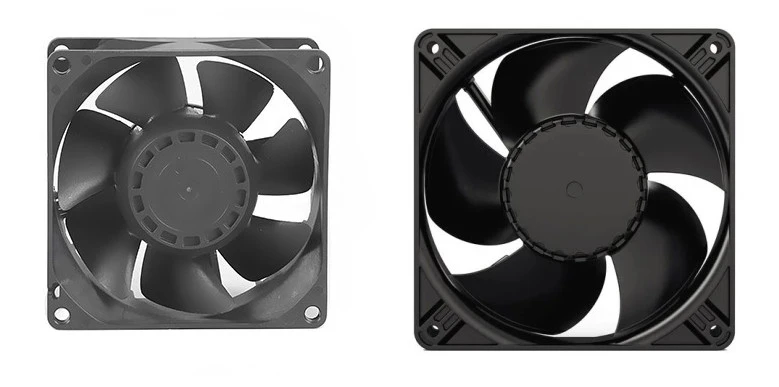

Industrial IP65 AC Cooling Fan for Harsh Dust and Moisture Environments
SZR's IP65 AC axial fan series is developed for industrial cooling applications exposed to water spray, airborne particles and unstable environmental conditions. The sealed motor structure and reinforced housing design enable reliable airflow performance in outdoor equipment, factory automation systems and heavy-duty ventilation installations. These AC waterproof fans maintain stable thermal dissipation capability during long-duration operation under humid or contaminated conditions.

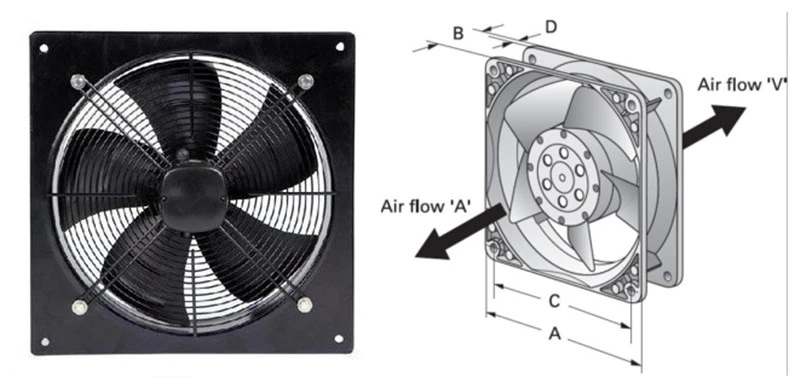

Product Structure
The fan frame is manufactured from corrosion-resistant aluminum alloy with protective surface treatment to enhance durability in industrial environments.
Impeller blades utilize flame-retardant engineering thermoplastic material compliant with UL94V-0 standards for improved mechanical strength and thermal stability.
The AC motor adopts moisture-resistant insulation technology and sealed bearing construction to reduce the influence of dust ingress and water exposure.
Optimized aerodynamic blade design minimizes airflow resistance while maintaining higher static pressure efficiency and reduced vibration levels.
Technical Specifications
|
Parameter |
AC 12038 |
AC 17251 |
|
Dimension |
120×120×38 mm |
172×150×51 mm |
|
Rated Voltage |
110V / 220V AC |
110V / 220V AC |
|
Frequency |
50/60 Hz |
50/60 Hz |
|
Input Power |
18-24 W |
38-52 W |
|
Speed |
2600-3200 RPM |
2800-3600 RPM |
|
Airflow |
95-145 CFM |
180-265 CFM |
|
Noise Level |
38-48 dB(A) |
48-60 dB(A) |
|
Bearing System |
Ball Bearing |
Ball Bearing |
|
Protection Level |
IP65 |
IP65 |
|
Operating Temperature |
-30°C to +75°C |
-30°C to +75°C |
|
Safety Approval |
CE, UL, RoHS |
CE, UL, RoHS |
Performance Features
• IP65 protection against dust penetration and water jets
• Stable airflow under continuous industrial operation
• Low-maintenance sealed motor construction
• Enhanced corrosion resistance for outdoor installation
• Reliable thermal management in high-humidity environments
Typical Applications
• Outdoor electrical cabinets
• Industrial HVAC systems
• Telecom base station cooling
• Agricultural machinery ventilation
• Power distribution equipment
• Automation control panels
• Renewable energy systems
FAQ
Q: Can the fan be installed outdoors?
A: Yes. The IP65 protection design supports operation in outdoor industrial environments with exposure to dust and rainwater.
Q: Which bearing type is suitable for continuous operation?
A: Dual ball bearing configurations are recommended for long-life continuous-duty applications.
Q: Is speed control available for AC fans?
A: Optional speed control solutions can be provided according to project requirements.
Q: Can customized cable lengths be supplied?
A: SZR supports customized wiring, connectors and terminal configurations for OEM projects.
Engineering & OEM Capability
SZR provides customized waterproof AC cooling solutions including voltage adaptation, airflow optimization, motor protection enhancement and waterproof structural integration for industrial thermal management systems.
