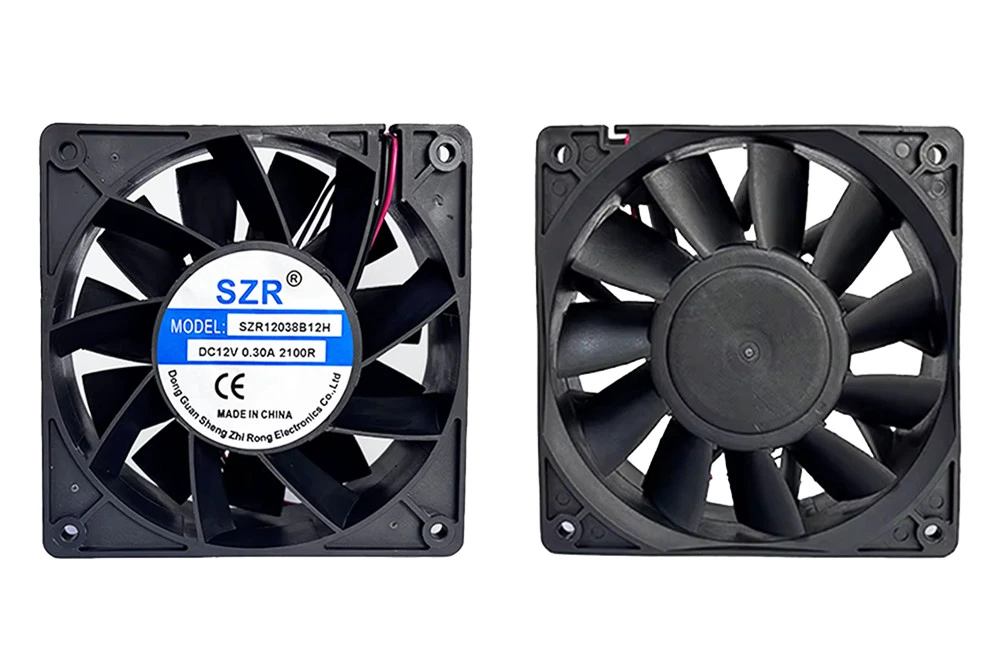

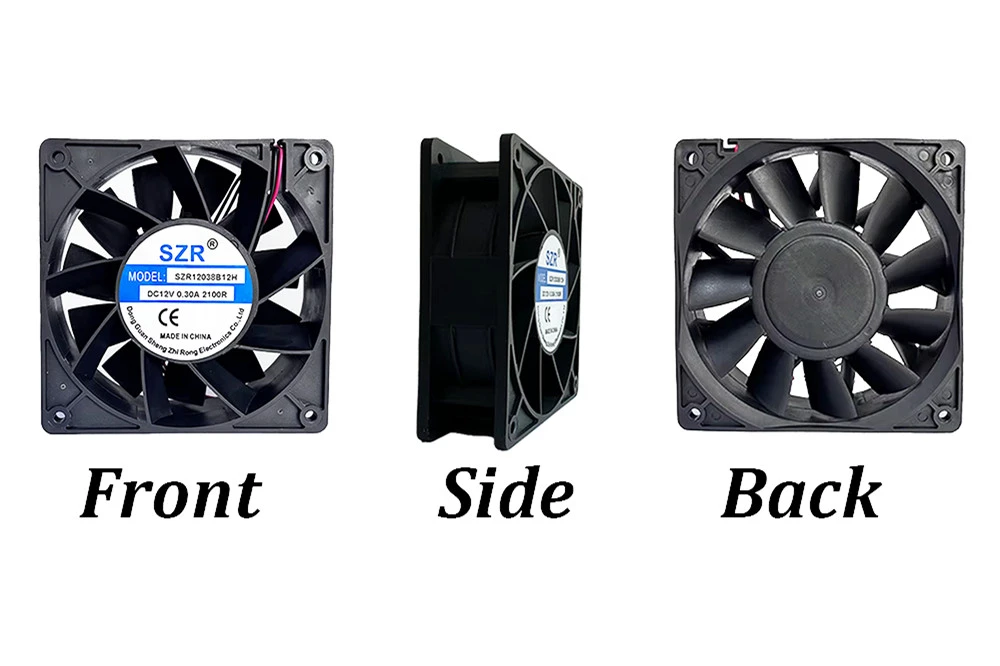

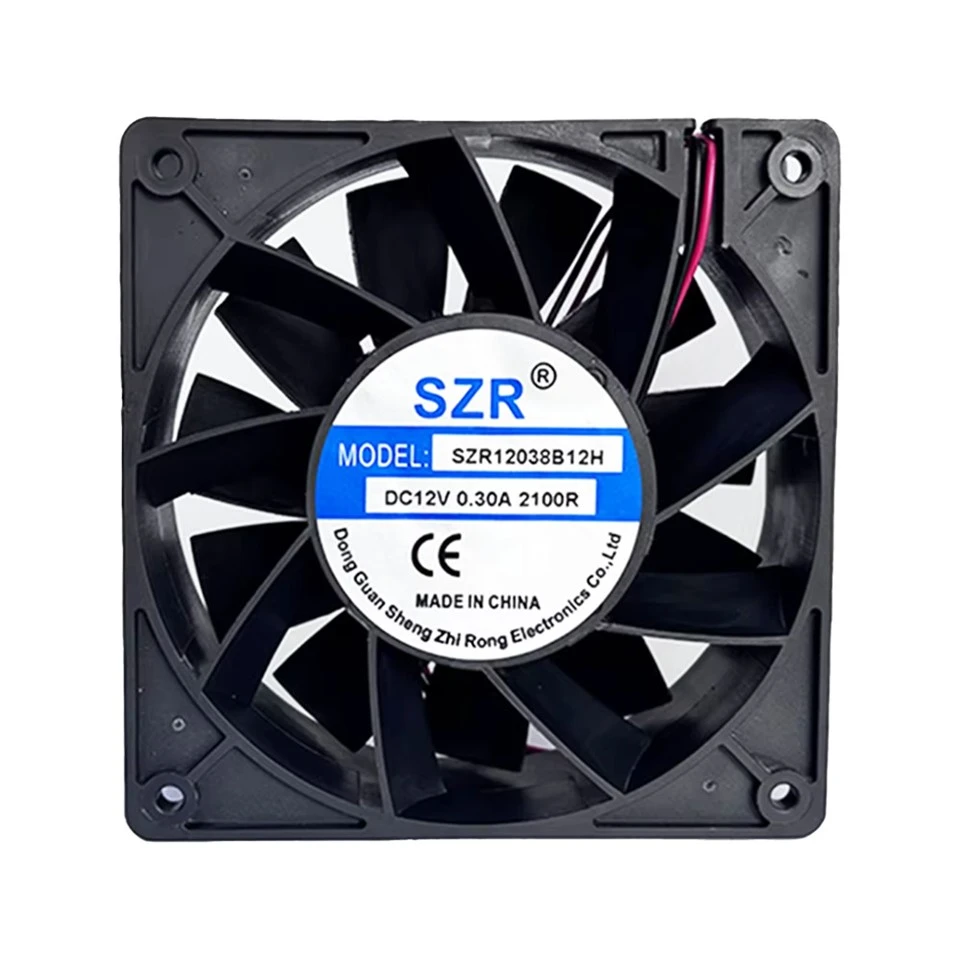

12038 High Temperature DC Cooling Fan for Industrial Thermal Management
SZR 12038 high temperature DC axial fan is designed for industrial equipment requiring compact structure, stable airflow and reliable thermal management under elevated operating temperatures. The fan combines high-efficiency DC motor technology with heat-resistant materials and dual ball bearing structure to support continuous ventilation performance in industrial control systems and thermal equipment.
Compared with conventional DC cooling fans, the SZR high temperature DC fan series provides improved thermal endurance, stable rotational performance and extended operational lifespan for demanding industrial environments.
Product Features
High-Efficiency DC Motor
The brushless DC motor structure provides stable speed performance, lower power consumption and efficient airflow output.
01
Heat-Resistant Construction
The motor insulation and frame materials are optimized for industrial high-temperature operation.
02
Compact and Stable Structure
120×120×38 mm frame design supports efficient installation within industrial cabinets and equipment systems.
03
Long Service Life
Dual ball bearings improve durability and operational stability during continuous-duty applications.
04
Flexible Voltage Options
Supports multiple DC voltage configurations for industrial control equipment integration.
05
Technical Specifications
|
Parameter |
12038 High Temperature DC Fan |
|
Dimension |
120×120×38 mm |
|
Rated Voltage |
12V / 24V / 48V DC |
|
Power Consumption |
8-32 W |
|
Speed Range |
2500-4500 RPM |
|
Air Volume |
85-220 CFM |
|
Noise Level |
38-60 dB(A) |
|
Bearing Type |
Dual Ball Bearing |
|
Frame Material |
Aluminum Alloy |
|
Operating Temperature |
-20°C to +120°C |
|
Protection Grade |
IP54 |
|
Insulation Class |
Class H |
|
Certifications |
CE, RoHS, UL |
Application Areas
• Industrial control cabinets
• Power supply systems
• Energy storage equipment
• Communication equipment
• Inverter cooling systems
• Automation control equipment
• Thermal management systems
• Industrial ventilation equipment
Performance Advantages
• Stable airflow and heat dissipation
• Efficient DC motor operation
• Reduced maintenance requirements
• Compact structure for equipment integration
• Reliable continuous-duty performance
• Enhanced durability in industrial environments
FAQ
Q: What voltage options are available?
A: The fan supports 12V, 24V and 48V DC configurations.
Q: Is PWM speed control available?
A: Yes. Customized PWM speed control solutions are available according to application requirements.
Q: Can the fan operate in elevated ambient temperatures?
A: Yes. The fan is designed for industrial high-temperature environments with Class H insulation and heat-resistant materials.
Q: What industries commonly use high temperature DC fans?
A: Industrial automation, energy storage, communication systems and power control equipment commonly use high temperature DC cooling fans.
Engineering & OEM Service
SZR provides customized DC cooling solutions including:
• PWM and FG signal customization
• Connector and cable customization
• Waterproof and dustproof enhancement
• Airflow and noise optimization
• Voltage and speed customization
• OEM and private label manufacturing
