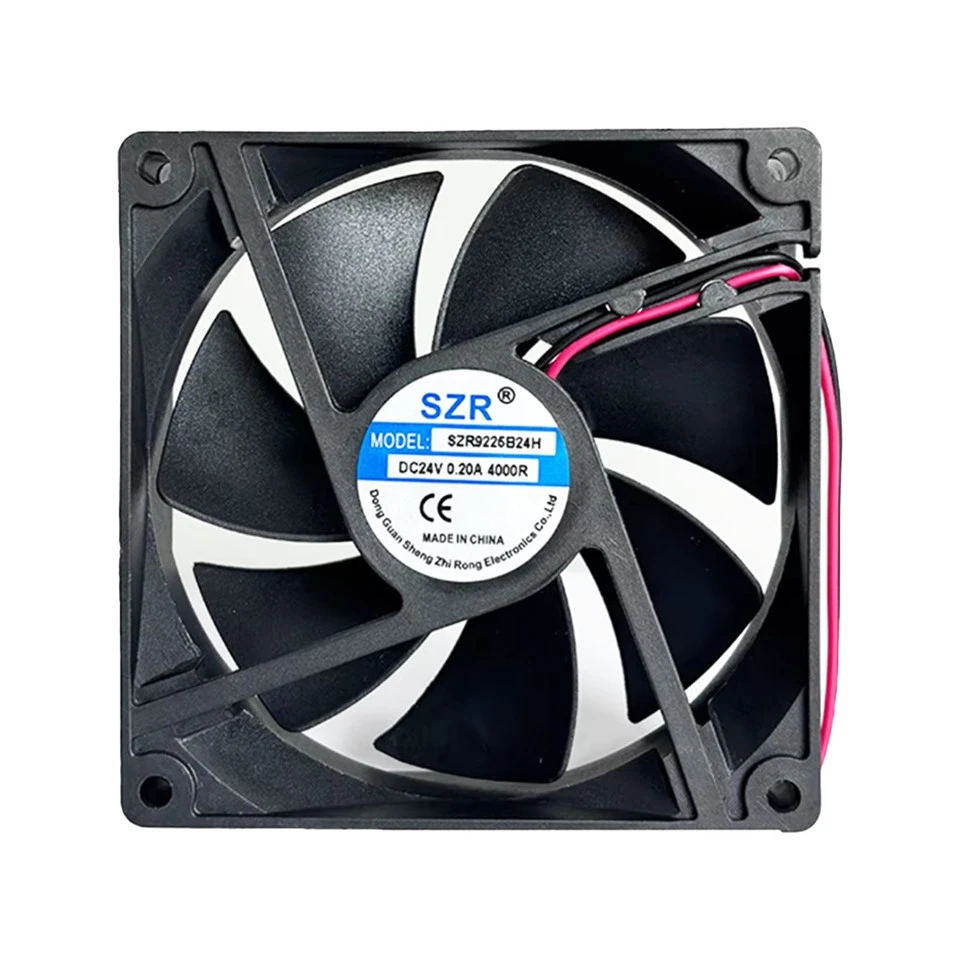

Quiet Cooling Solution for Sensitive Electronic Equipment

SZR's Low Noise DC axial fan series is designed for applications requiring stable ventilation with minimized acoustic interference. The fan structure balances airflow efficiency and quiet operation, making it suitable for electronic systems operating in noise-sensitive environments.

Acoustic Optimization

The fan blade profile is engineered to reduce airflow turbulence and lower operational sound levels during continuous rotation.

Compared with conventional cooling fans, the optimized motor and blade coordination decreases vibration transmission while maintaining effective airflow circulation. The brushless DC motor structure supports smooth startup performance and stable low-noise operation.

12V and 24V DC input options support compatibility with various electronic cooling systems.

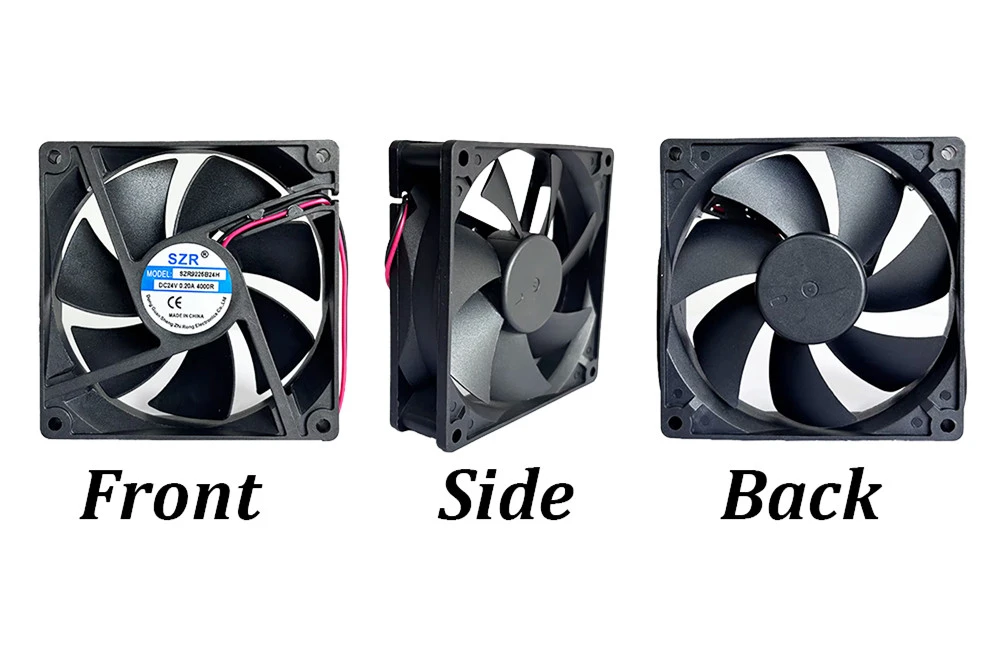

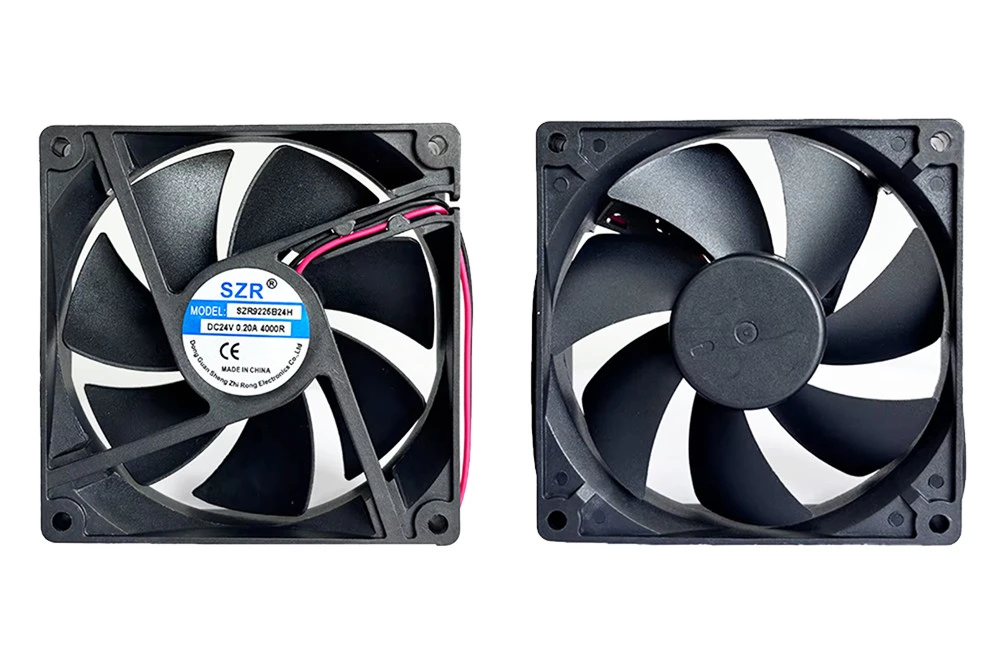

Product Structure

The lightweight fan frame uses high-strength thermoplastic material resistant to thermal deformation and environmental stress.

Precision-balanced impeller construction improves rotational smoothness and reduces mechanical vibration during operation. Integrated bearing technology extends service life and enhances operational consistency.

Optional anti-vibration pads and PWM speed control functions are available for advanced noise reduction requirements.

Specifications

Parameter	LNA9225
Dimension	92×92×25 mm
Rated Voltage	12V / 24V DC
Current	0.08-0.32 A
Speed	1200-2600 RPM
Air Flow	28-58 CFM
Static Pressure	2.5-9.8 mmH₂O
Noise	16-29 dB(A)
Bearing	Sleeve / Hydraulic Bearing
Life Expectancy	40,000-60,000 Hours
Protection Rating	IP52
Material	PBT Frame and Fan Blade
Certifications	CE, RoHS, ISO9001

Additional silent-operation versions and customized cable lengths are available.

Key Features

• Low acoustic operation for quiet environments

• Stable airflow performance

• Energy-efficient brushless DC motor

• Reduced vibration during continuous operation

• Compact structure for flexible installation

• OEM and ODM customization supported

Recommended Applications

• Medical equipment
• Home appliances

• Office electronics
• Network communication devices
• Audio equipment

• Intelligent control panels
• Air purification products

Installation Notes

• Rubber shock absorbers can further reduce vibration noise.
• Avoid airflow blockage near intake and exhaust areas.
• Sleeve bearing models are suitable for horizontal installation conditions.
