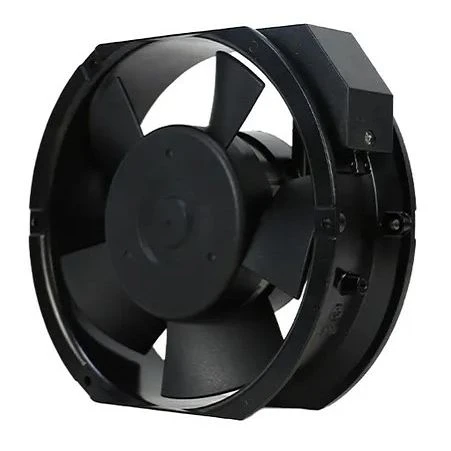

Fully Sealed IP68 DC Fan for Extreme Moisture and Harsh Environmental Cooling
SZR's IP68 DC waterproof fan series is specially designed for electronic cooling applications requiring complete protection against water immersion, moisture penetration and corrosive operating conditions. The brushless DC motor structure combines high efficiency, low power consumption and long operational life, making these fans suitable for demanding environments including outdoor communication equipment, marine electronics and energy storage systems.
Product Construction
The fan housing adopts reinforced thermoplastic material with waterproof sealing treatment to ensure stable mechanical performance during long-term exposure to humid conditions.
High-precision fan blades are balanced dynamically to improve airflow uniformity and reduce rotational noise during high-speed operation.
The brushless DC motor integrates waterproof encapsulation technology that protects internal electronic components from water intrusion and condensation damage.
Sealed dual ball bearings improve operational stability while extending service lifetime under continuous industrial workloads.
Technical Specifications
|
Parameter |
DC 12038 |
DC 17251 |
|
Dimension |
120×120×38 mm |
172×150×51 mm |
|
Rated Voltage |
12V / 24V / 48V DC |
24V / 48V DC |
|
Rated Current |
0.18-0.75 A |
0.55-1.60 A |
|
Speed Range |
2500-4500 RPM |
2800-5000 RPM |
|
Airflow Capacity |
105-210 CFM |
220-380 CFM |
|
Noise |
35-52 dB(A) |
45-65 dB(A) |
|
Bearing Type |
Dual Ball Bearing |
Dual Ball Bearing |
|
Waterproof Grade |
IP68 |
IP68 |
|
Life Expectancy |
50,000 hrs |
70,000 hrs |
|
Operating Temperature |
-40°C to +80°C |
-40°C to +80°C |
|
Optional Functions |
PWM / FG / RD |
PWM / FG / RD |
|
Certifications |
CE, RoHS, UL |
CE, RoHS, UL |
Key Advantages
• Full IP68 waterproof protection structure
• Efficient brushless DC motor operation
• Excellent resistance to humidity and condensation
• Long service life with sealed bearing design
• PWM intelligent speed regulation available
Common Installation Areas
• Outdoor LED displays
• Marine communication devices
• Battery storage systems
• EV charging infrastructure
• Solar inverter cooling
• Waterproof industrial enclosures
• Environmental monitoring equipment
FAQ
Q: Can the fan operate under temporary water immersion?
A: Yes. IP68 versions are designed for high-level waterproof performance including temporary immersion conditions.
Q: Are monitoring signals supported?
A: PWM speed control, tachometer output and alarm detection functions are available as optional features.
Q: What is the recommended voltage selection?
A: 24V DC models are commonly selected for industrial automation and energy equipment applications.
Q: Can anti-salt spray treatment be added?
A: SZR can provide additional corrosion-resistant coating solutions for marine environments.
Engineering & OEM Service
SZR supports OEM waterproof fan development including customized dimensions, waterproof structures, signal integration, connector assembly and environmental reliability enhancement for industrial cooling projects.
