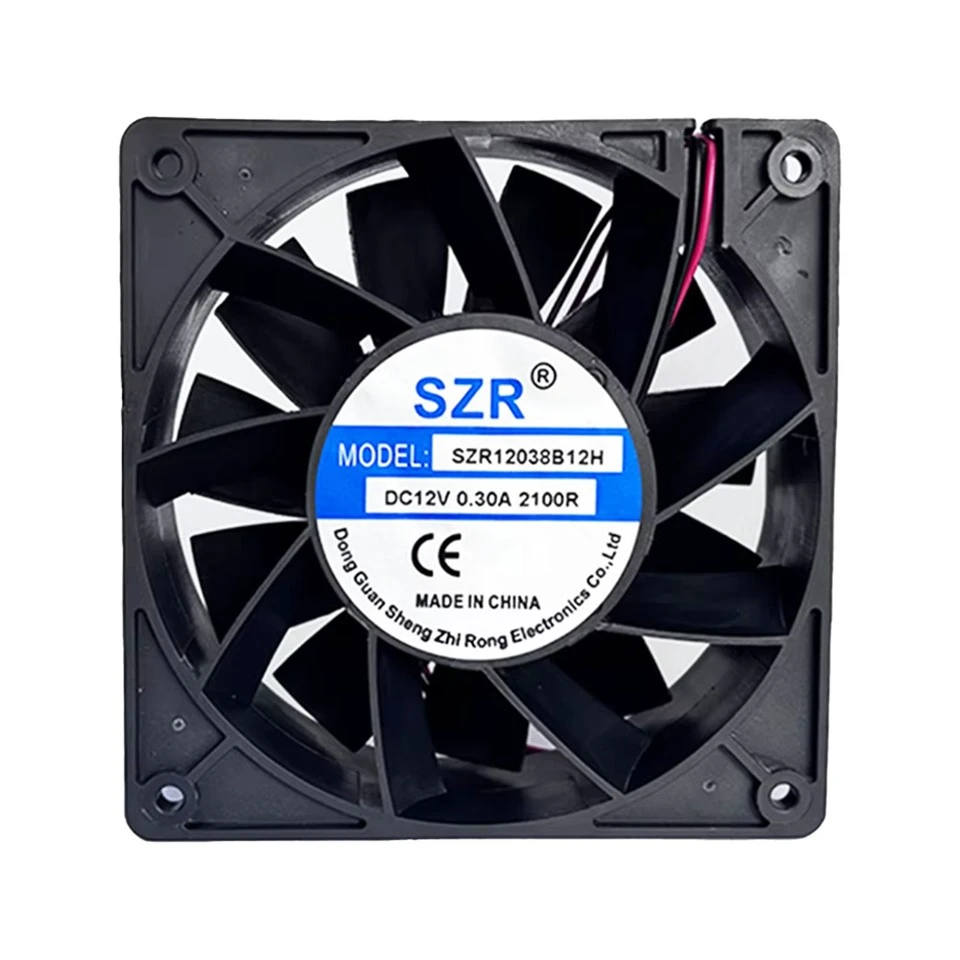

Ultra-Speed Industrial Cooling Fan for Precision Heat Dissipation Applications
SZR's High RPM cooling fan series is designed for industrial systems requiring rapid thermal exchange and concentrated airflow under compact installation conditions. By utilizing high-speed motor architecture and reinforced aerodynamic blades, the fan delivers accelerated heat removal efficiency while maintaining rotational stability during long-term operation. These fans are suitable for servers, communication hardware, laser equipment and high-density power modules where fast cooling response is critical.
Product Construction
The fan frame is manufactured using high-rigidity aluminum alloy with anti-corrosion treatment to ensure mechanical durability during high-speed rotation.
Impeller blades are molded from heat-resistant PBT engineering material with precision balancing technology to minimize vibration under ultra-high RPM conditions.
The internal motor adopts high-performance copper winding with optimized magnetic structure to improve torque output and rotational efficiency.
Dual precision ball bearings enhance operational stability and reduce bearing wear during continuous high-speed service.
Technical Specifications
|
Parameter |
HRF 8038 |
HRF 12038 |
|
Dimension |
80×80×38 mm |
120×120×38 mm |
|
Rated Voltage |
12V / 24V DC |
24V / 48V DC |
|
Power Consumption |
15-32 W |
28-55 W |
|
Speed Range |
6500-11000 RPM |
4800-8500 RPM |
|
Air Volume |
75-165 CFM |
180-320 CFM |
|
Noise Level |
52-68 dB(A) |
58-72 dB(A) |
|
Bearing Type |
Dual Ball Bearing |
Dual Ball Bearing |
|
Protection Grade |
IP54 |
IP54 / IP65 |
|
Operating Temperature |
-20°C to +75°C |
-20°C to +80°C |
|
Signal Function |
PWM / FG Optional |
PWM / FG / RD Optional |
|
Certifications |
CE, RoHS, UL |
CE, RoHS, UL |
Operational Advantages
• Extremely fast heat dissipation capability
• Stable high-speed motor performance
• Improved airflow concentration efficiency
• Durable bearing system for continuous operation
• Supports intelligent speed regulation functions
Typical Installation Areas
• GPU cooling systems
• Industrial servers
• Telecom communication devices
• Laser processing equipment
• Medical electronic systems
• AI computing hardware
• High-power control modules
FAQ
Q: Can the fan operate continuously at maximum RPM?
A: Yes. The fan is designed with reinforced bearing and motor protection structures for continuous-duty operation.
Q: Does high RPM increase vibration levels?
A: Precision dynamic balancing technology effectively minimizes rotational vibration.
Q: Is PWM speed control supported?
A: PWM intelligent speed control is available for flexible thermal management.
Q: Can SZR customize connector types?
A: Customized terminal, wiring and connector configurations are available for OEM applications.
Engineering & OEM Service
SZR offers customized high-speed cooling solutions including airflow optimization, low-vibration balancing, intelligent control integration and thermal performance enhancement for industrial electronics projects.
