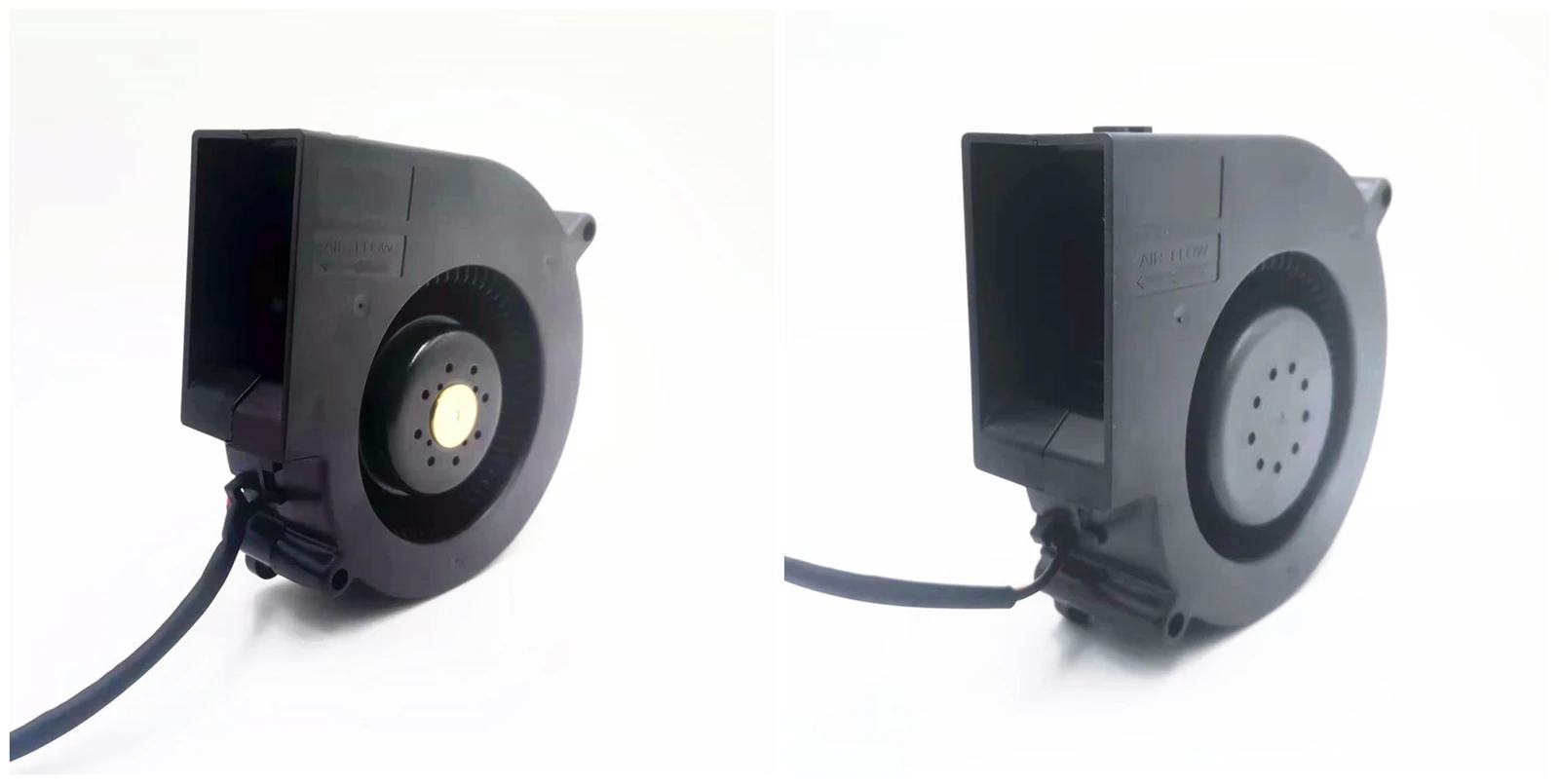

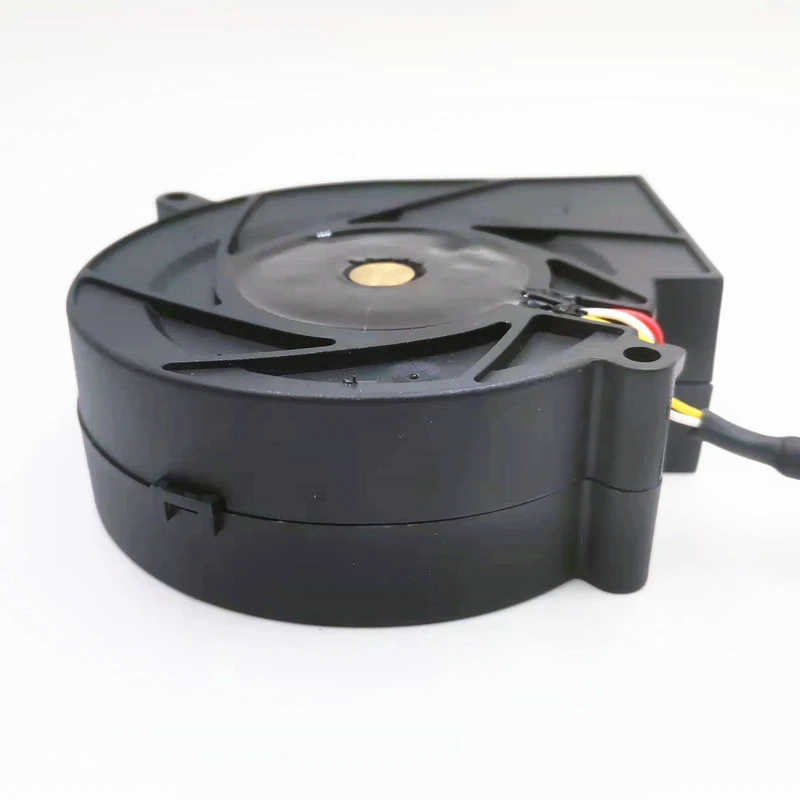

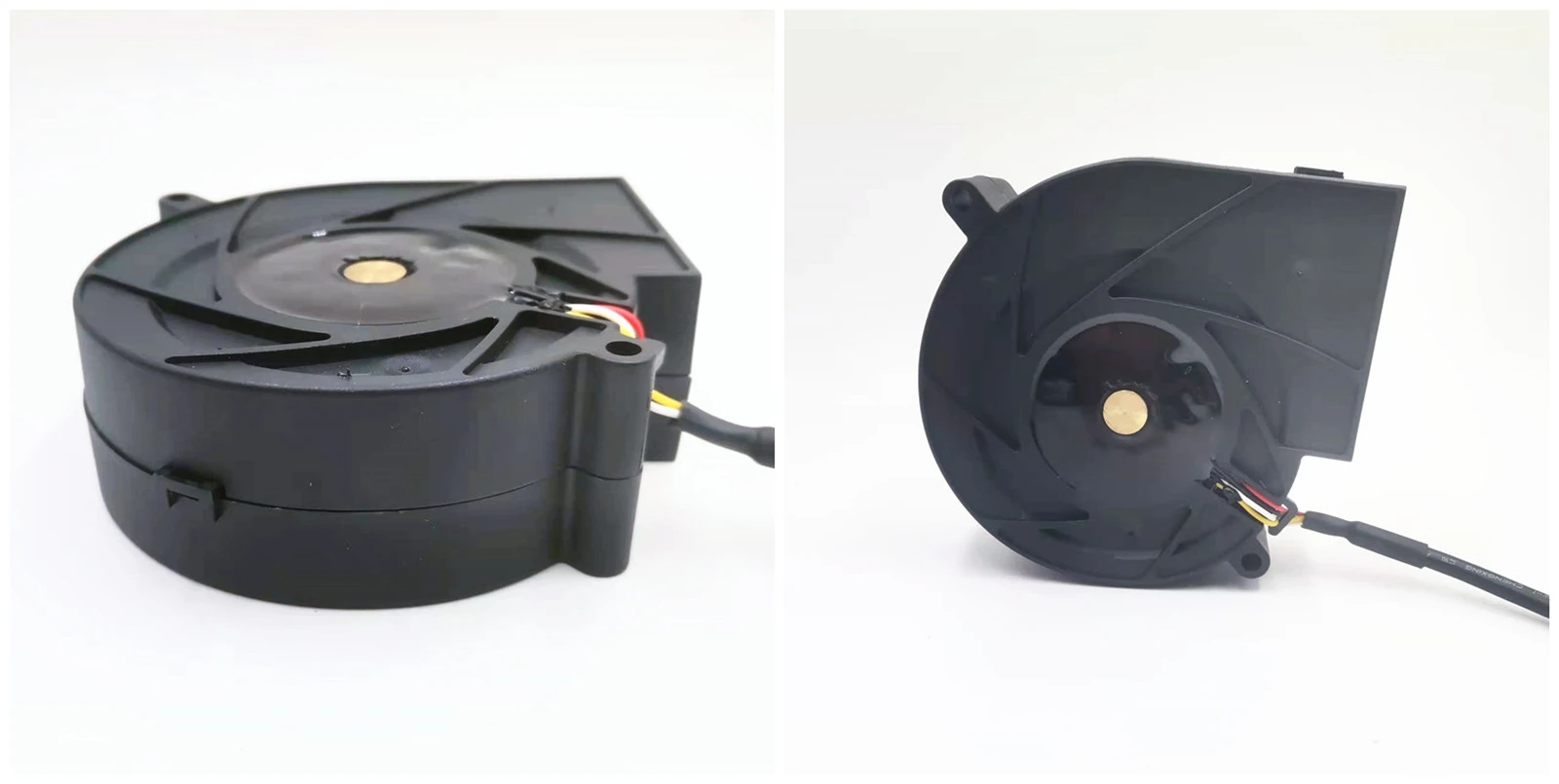

Turbo-Type Industrial Cooling Fan for Concentrated Heat Exhaust Systems
SZR's turbo cooling fan series is engineered for equipment requiring focused airflow pressure and accelerated thermal discharge in compact installation environments. The turbo-style impeller design generates concentrated air movement with improved pressure efficiency, making the fan suitable for precision cooling systems and restricted airflow channels. These fans are widely installed in industrial electronics, inverter modules, gaming systems and compact thermal management equipment.
Product Construction
The housing structure adopts high-strength aluminum alloy combined with precision-machined airflow channels to improve airflow compression efficiency.
Turbo impeller blades are manufactured from heat-resistant engineering polymer material with optimized curvature to increase airflow acceleration performance.
The motor incorporates low-loss magnetic design and thermal protection circuitry to maintain stable output during high-load operation.
Balanced rotating assembly reduces noise generation while improving airflow consistency during continuous service.
Technical Specifications
|
Parameter |
TCF 9733 |
TCF 12032 |
|
Dimension |
97×97×33 mm |
120×120×32 mm |
|
Rated Voltage |
12V / 24V DC |
24V / 48V DC |
|
Power Consumption |
10-24 W |
18-40 W |
|
Speed Range |
4200-7800 RPM |
3600-6800 RPM |
|
Air Volume |
58-125 CFM |
95-210 CFM |
|
Static Pressure |
120-260 Pa |
180-360 Pa |
|
Noise Level |
40-58 dB(A) |
48-65 dB(A) |
|
Bearing Type |
Ball Bearing |
Dual Ball Bearing |
|
Protection Grade |
IP54 |
IP54 / IP65 |
|
Operating Temperature |
-20°C to +75°C |
-20°C to +80°C |
|
Control Function |
PWM Optional |
PWM / FG Optional |
|
Certifications |
CE, RoHS, ISO9001 |
CE, RoHS, ISO9001 |
Operational Advantages
• Concentrated turbo airflow output
• Enhanced static pressure performance
• Suitable for compact airflow channels
• Rapid thermal exhaust capability
• Intelligent speed control compatibility
Typical Installation Areas
• Inverter cooling modules
• Compact industrial PCs
• Power supply systems
• Gaming hardware cooling
• Embedded control systems
• Precision electronic equipment
• Restricted ventilation enclosures
FAQ
Q: What is the advantage of a turbo cooling fan?
A: Turbo fans provide concentrated airflow pressure for compact systems requiring efficient heat exhaust.
Q: Does the fan support smart speed regulation?
A: Optional PWM control enables automatic speed adjustment based on thermal demand.
Q: Can the fan operate in enclosed equipment structures?
A: Yes. Turbo airflow design is suitable for restricted ventilation pathways.
Q: Are customized airflow specifications available?
A: SZR can provide customized airflow pressure, voltage and connector configurations.
Engineering & OEM Service
SZR provides turbo cooling fan customization services including impeller optimization, intelligent control integration, airflow channel adjustment and thermal management enhancement for industrial OEM applications.Top of Form
