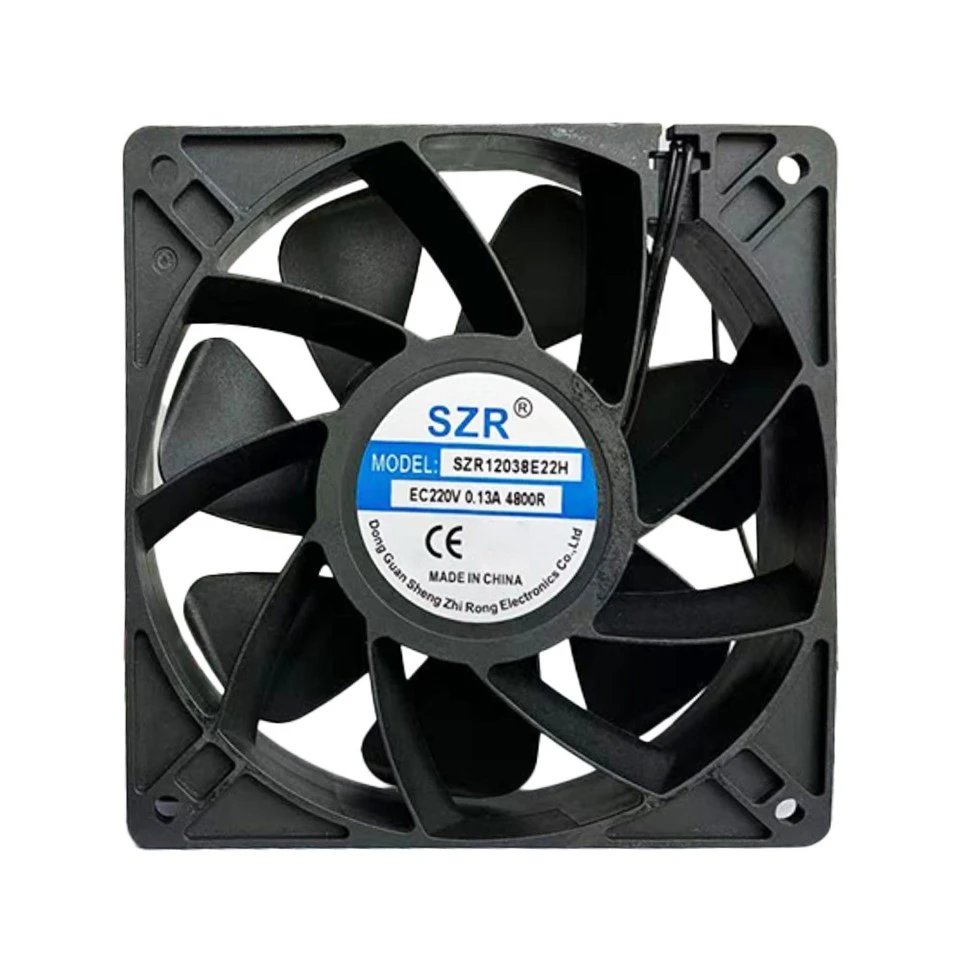

High-Airflow EC Cooling Fan for Industrial Ventilation Systems
SZR's 120mm EC axial fan series is engineered for medium-scale thermal management applications requiring balanced airflow efficiency, intelligent speed regulation and reduced power consumption. The electronically commutated motor design improves operational stability while maintaining lower heat generation during long-term continuous service. These fans are widely applied in telecom cabinets, inverter systems, industrial control enclosures and energy storage equipment.

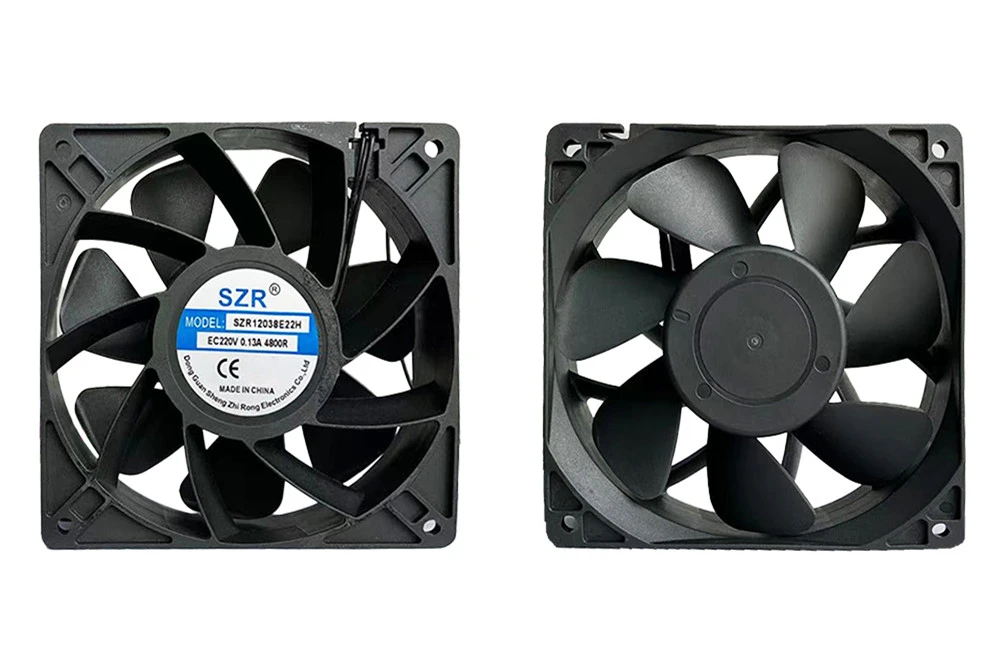

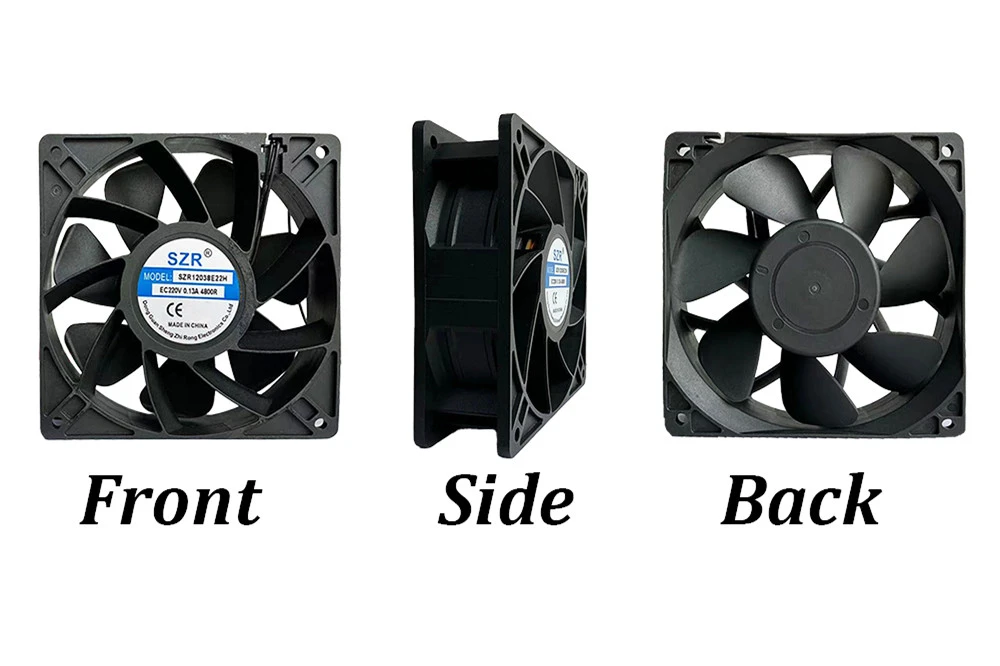

Product Construction
The external frame adopts reinforced die-cast aluminum with anti-oxidation coating to improve structural rigidity and corrosion resistance in industrial environments.
Fan blades are manufactured from UL94V-0 certified thermoplastic material, providing excellent dimensional accuracy and thermal endurance under elevated operating temperatures.
The EC motor integrates electronic control circuitry that supports efficient variable-speed operation and lower electromagnetic interference compared with conventional AC fans.
Optimized blade geometry improves airflow concentration while reducing rotational turbulence and operating vibration.
Technical Specifications
|
Parameter |
EC 12025 |
EC 12038 |
|
Dimension |
120×120×25 mm |
120×120×38 mm |
|
Rated Voltage |
24V / 48V DC EC |
24V / 48V DC EC |
|
Power Consumption |
6-12 W |
10-18 W |
|
Speed Range |
1800-3200 RPM |
2500-4200 RPM |
|
Air Volume |
68-115 CFM |
110-165 CFM |
|
Noise Level |
28-42 dB(A) |
35-48 dB(A) |
|
Bearing Type |
Ball Bearing |
Ball Bearing |
|
Protection Grade |
IP54 / IP65 |
IP54 / IP65 |
|
Operating Temperature |
-20°C to +70°C |
-20°C to +70°C |
|
Control Function |
PWM / FG / RD Optional |
PWM / FG / RD Optional |
|
Certifications |
CE, RoHS, ISO9001:2015, UL |
CE, RoHS, ISO9001:2015, UL |
Operational Advantages
• High airflow efficiency with reduced energy loss
• Intelligent speed adjustment capability
• Reliable continuous-duty operation
• Low motor temperature rise during heavy load conditions
• Optional alarm signal and PWM control interface
Typical Installation Areas
• Telecom power systems
• UPS and inverter equipment
• EV charging stations
• Battery energy storage cabinets
• Industrial automation controllers
• Network communication racks
• Heat dissipation modules
Frequently Asked Questions
Q: Does the fan support speed control?
A: Yes. PWM speed regulation and tachometer signal output are available for intelligent control systems.
Q: Which bearing structure is recommended for 24-hour operation?
A: Dual ball bearing versions are recommended for continuous industrial applications.
Q: Can the fan operate in dusty environments?
A: IP65 configurations provide enhanced protection against dust and moisture exposure.
Q: Is custom voltage available?
A: SZR can provide customized EC voltage and connector solutions according to project requirements.
Engineering & OEM Service
SZR supports customized EC cooling solutions including airflow optimization, wiring configuration, signal integration and environmental protection upgrades. Prototype sampling and OEM manufacturing services are available for industrial cooling projects.
