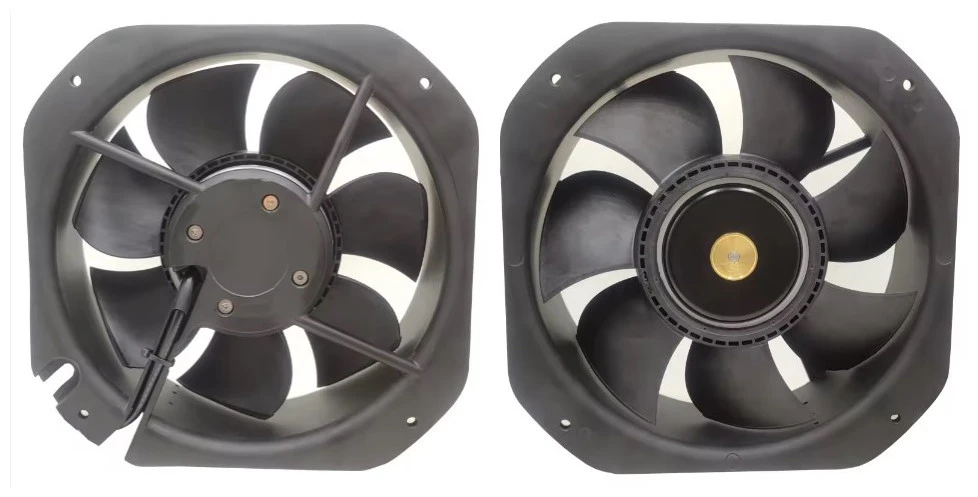

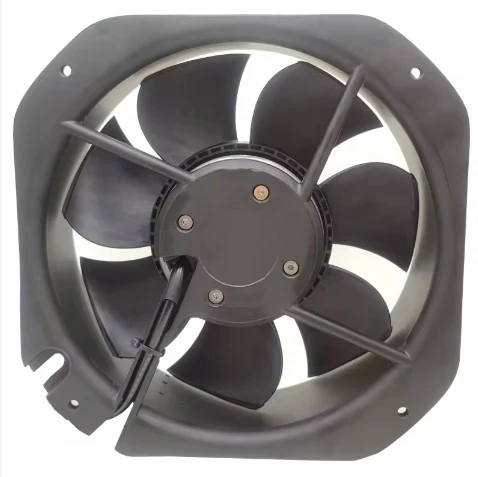

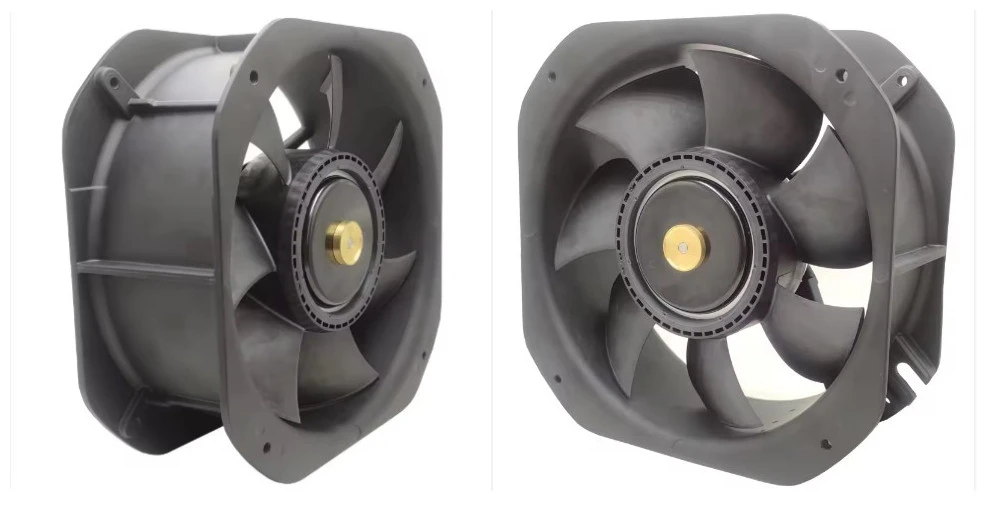

Large Diameter EC Fan for High-Volume Ventilation Applications
SZR's 200mm EC axial cooling fan series is designed for equipment requiring strong ventilation capacity and stable air circulation across larger cooling surfaces. By combining EC motor technology with large-diameter blade design, the fan delivers efficient airflow output while lowering operating energy consumption and acoustic load. The series is suitable for renewable energy systems, industrial ventilation equipment and large electrical cabinets.
Mechanical Configuration
The fan frame uses heavy-duty aluminum alloy construction with precision balancing treatment to maintain rotational stability at higher airflow loads.
Aerodynamic impeller blades are developed using multi-angle airflow simulation to improve static pressure distribution and air delivery efficiency.
The EC motor assembly adopts integrated electronic commutation technology to reduce electrical loss and improve operational lifespan.
Internal components are optimized for thermal resistance and reliable performance under variable environmental conditions.
Technical Specifications
|
Parameter |
EC 20060 |
EC 20080 |
|
Dimension |
200×200×60 mm |
200×200×80 mm |
|
Input Voltage |
230V EC |
230V EC |
|
Frequency |
50/60 Hz |
50/60 Hz |
|
Rated Power |
28-55 W |
45-80 W |
|
Rotational Speed |
1600-2800 RPM |
1800-3200 RPM |
|
Airflow Capacity |
420-680 CFM |
580-850 CFM |
|
Noise Value |
48-62 dB(A) |
52-66 dB(A) |
|
Bearing System |
Dual Ball Bearing |
Dual Ball Bearing |
|
Protection Level |
IP54 |
IP65 |
|
Insulation Class |
Class F |
Class F |
|
Service Life |
50,000 Hours |
60,000 Hours |
|
Certifications |
CE, RoHS, ISO9001, UL |
CE, RoHS, ISO9001, UL |
Performance Features
• High-volume airflow for large enclosure cooling
• Improved energy utilization with EC motor system
• Stable operation under continuous industrial workload
• Enhanced static pressure capability
• Long-term durability in demanding environments
Typical Applications
• Industrial ventilation systems
• Solar inverter cooling
• Wind power electrical cabinets
• Data center ventilation units
• Energy storage cooling systems
• Large UPS equipment
• HVAC auxiliary airflow systems
Customer Inquiries
Q: Can this fan replace traditional AC axial fans?
A: Yes. EC technology provides better efficiency and speed regulation while reducing power consumption.
Q: Is the fan suitable for high-temperature operation?
A: The motor and bearing structure support extended operation in industrial thermal environments.
Q: Are control signals supported?
A: Optional PWM, alarm and tachometer functions can be integrated.
Q: What protection options are available?
A: Different IP protection grades can be selected according to installation conditions.
Production & Technical Assistance
SZR provides project-oriented cooling fan development including airflow simulation, customized motor configuration and mechanical integration support for industrial ventilation systems.
