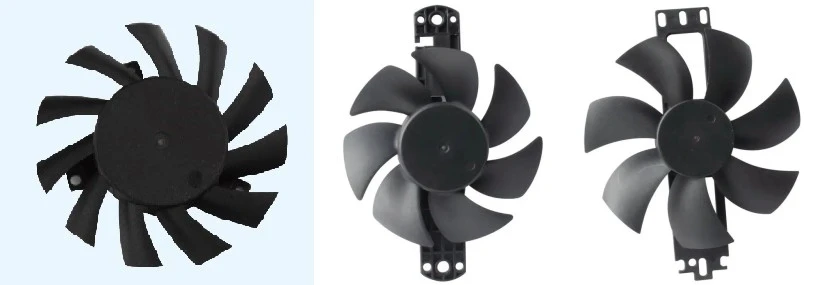

SZR Bracket-Style Axial Cooling Fan Series
SZR's 30mm–120mm Support Fan Series is a line of frame-less, bracket-mounted axial cooling fans engineered for compact, space-constrained thermal management applications. Eliminating the need for a full outer frame, these fans integrate directly into device enclosures via built-in mounting brackets, reducing footprint while delivering reliable airflow.
Available with sleeve or ball bearing options, multi-voltage DC configurations (5V / 12V / 24V), and 7 standard sizes (30×10mm to 120×25mm), the series balances cost efficiency, performance, and durability for consumer and industrial electronics. All models comply with CE and RoHS standards to meet global regulatory requirements.
Key Features
|
Feature |
Details |
|
Bracket-Only Design |
Frame-less direct-mount structure reduces installation footprint by ~30% vs. standard framed fans, ideal for slim-profile devices. |
|
Full Size Range |
7 standard dimensions to match airflow and space constraints: 30×10, 40×10, 50×10, 60×10, 80×25, 90×25, 120×25 (mm). |
|
Dual Bearing Options |
- Sleeve bearings: Cost-effective for low-duty, low-vibration applications. - Ball bearings: Extended lifespan (up to 50,000 hours MTBF @ 25°C) for high-duty cycles. |
|
Wide Voltage Tolerance |
Rated for 5V, 12V, and 24V DC with ±10% operating voltage range, ensuring stable performance across power supply variations. |
|
Low-Noise Operation |
Aerodynamically optimized impeller blades minimize turbulence, delivering quiet cooling (26.3–32.3 dBA) for noise-sensitive environments. |
|
Regulatory Compliance |
CE and RoHS certified, with rigorous testing for vibration, temperature cycling, and long-term reliability. |

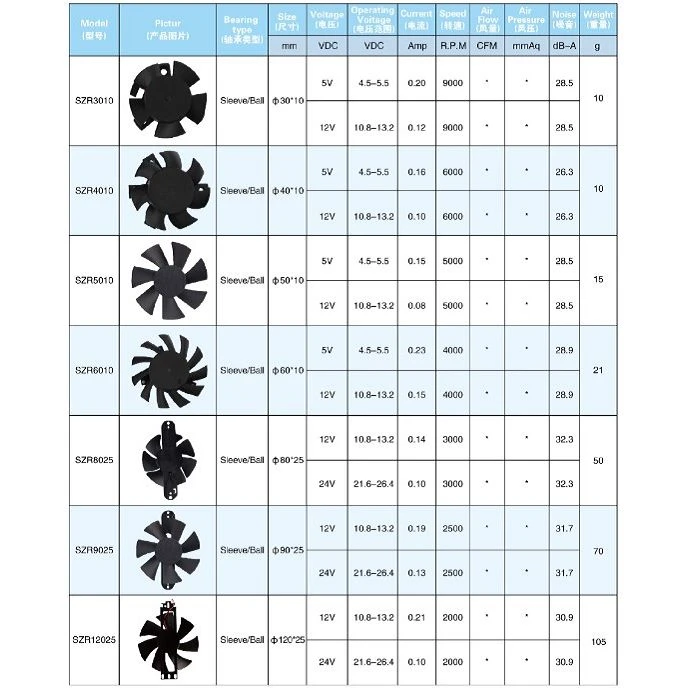

Detailed Technical Specifications
|
Model No. |
Dimension (mm) |
Bearing Type |
Rated Voltage (VDC) |
Operating Voltage Range (VDC) |
Rated Current (A) |
Rated Speed (RPM) |
Noise Level (dBA) |
Weight (g) |
|
SZR3010 |
φ30 × 10 |
Sleeve / Ball |
5 / 12 |
4.5–5.5 / 10.8–13.2 |
0.20 / 0.12 |
9000 |
28.5 |
10 |
|
SZR4010 |
φ40 × 10 |
Sleeve / Ball |
5 / 12 |
4.5–5.5 / 10.8–13.2 |
0.16 / 0.10 |
6000 |
26.3 |
10 |
|
SZR5010 |
φ50 × 10 |
Sleeve / Ball |
5 / 12 |
4.5–5.5 / 10.8–13.2 |
0.15 / 0.08 |
5000 |
28.5 |
15 |
|
SZR6010 |
φ60 × 10 |
Sleeve / Ball |
5 / 12 |
4.5–5.5 / 10.8–13.2 |
0.23 / 0.15 |
4000 |
28.9 |
21 |
|
SZR8025 |
φ80 × 25 |
Sleeve / Ball |
12 / 24 |
10.8–13.2 / 21.6–26.4 |
0.14 / 0.10 |
3000 |
32.3 |
50 |
|
SZR9025 |
φ90 × 25 |
Sleeve / Ball |
12 / 24 |
10.8–13.2 / 21.6–26.4 |
0.19 / 0.13 |
2500 |
31.7 |
70 |
|
SZR12025 |
φ120 × 25 |
Sleeve / Ball |
12 / 24 |
10.8–13.2 / 21.6–26.4 |
0.21 / 0.10 |
2000 |
30.9 |
105 |
*Note: Airflow (CFM) and Static Pressure (mmAq) are optimized for system-specific integration. Custom performance tuning and detailed test reports are available upon request.
Typical Applications
SZR Support Fans are designed for embedded cooling solutions across industries:
Consumer Electronics: Set-top boxes, routers, gaming consoles, air purifiers, humidifiers
Power Systems: AC/DC adapters, LED drivers, industrial power supplies
Industrial Control: PLCs, embedded computers, factory automation equipment
IoT & Smart Devices: Smart speakers, network switches, compact IoT gateways
Customization Capabilities
To meet unique application requirements, we offer flexible modifications:
- Connector & Cable Adjustments: Custom wire lengths, terminal types (JST, Molex, etc.)
- Performance Tuning: Adjusted RPM, airflow, or noise levels to match system thermal needs
- Environmental Coatings: Water-resistant, dust-proof, or anti-corrosion treatments for harsh conditions
- Speed Control Options: PWM, voltage control, or tachometer signal feedback
- Special Voltages: Custom DC configurations for non-standard power systems
All fans are backed by strict quality control and a 1-year warranty. Contact our sales team to discuss your cooling needs or request a custom quote.
