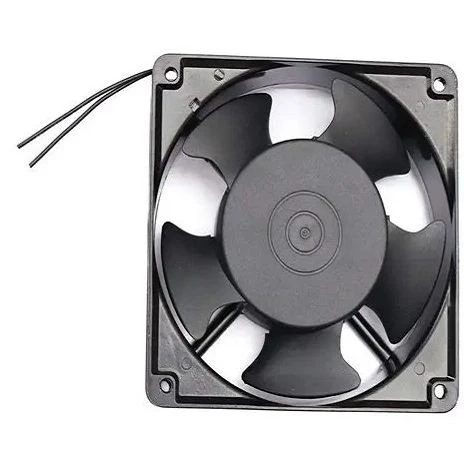

Intelligent Cooling Fan for Communication and Network Equipment
SZR telecom cooling fans are engineered for communication infrastructure requiring stable thermal management, intelligent speed regulation and dependable long-term reliability. The fan series improves equipment ventilation efficiency while supporting lower operating temperatures in densely integrated telecom systems. These cooling fans are widely used in base stations, transmission cabinets, network switches and optical communication equipment.
Design Features
The outer frame utilizes corrosion-resistant aluminum alloy construction to improve durability in outdoor and telecom operating environments.
The impeller system adopts flame-retardant thermoplastic material with optimized aerodynamic balancing for smoother airflow output.
The electronically controlled motor structure supports lower electromagnetic noise and efficient speed regulation.
Advanced airflow channel optimization improves heat dissipation performance while minimizing vibration during operation.
Technical Specifications
|
Parameter |
TC12025 |
TC12038 |
|
Dimension |
120×120×25 mm |
120×120×38 mm |
|
Rated Voltage |
48V DC |
48V DC |
|
Rated Current |
0.18-0.45 A |
0.35-0.75 A |
|
Speed Range |
2200-4200 RPM |
3200-5800 RPM |
|
Airflow Output |
72-138 CFM |
125-220 CFM |
|
Noise Range |
30-46 dB(A) |
38-56 dB(A) |
|
Bearing Type |
Ball Bearing |
Ball Bearing |
|
Protection Class |
IP55 / IP68 |
IP55 / IP68 |
|
Operating Temperature |
-40°C to +75°C |
-40°C to +75°C |
|
Monitoring Function |
PWM / FG / RD |
PWM / FG / RD |
|
Certifications |
CE, UL, RoHS, ISO9001 |
CE, UL, RoHS, ISO9001 |
Functional Advantages
• High reliability for telecom infrastructure
• Intelligent speed regulation capability
• Excellent environmental adaptability
• Stable airflow under continuous operation
• Enhanced protection against moisture and dust
Typical Applications
• Telecom base stations
• Optical transmission systems
• Network communication cabinets
• 5G equipment enclosures
• Fiber optic control systems
• Data communication racks
• Outdoor communication devices
FAQ
Q: Can the fan operate in outdoor telecom environments?
A: Yes. IP68 protection configurations are available for harsh outdoor conditions.
Q: Does the fan support remote monitoring systems?
A: PWM and FG monitoring functions support intelligent telecom management systems.
Q: What voltage configuration is commonly used?
A: 48V DC versions are widely used in telecom power systems.
Q: Can SZR provide customized waterproof designs?
A: Yes. Waterproof sealing and connector customization are supported.
Telecom OEM Solution Support
SZR provides customized telecom cooling solutions including intelligent control integration, waterproof enhancement, low-noise optimization and airflow management services for communication equipment manufacturers.
