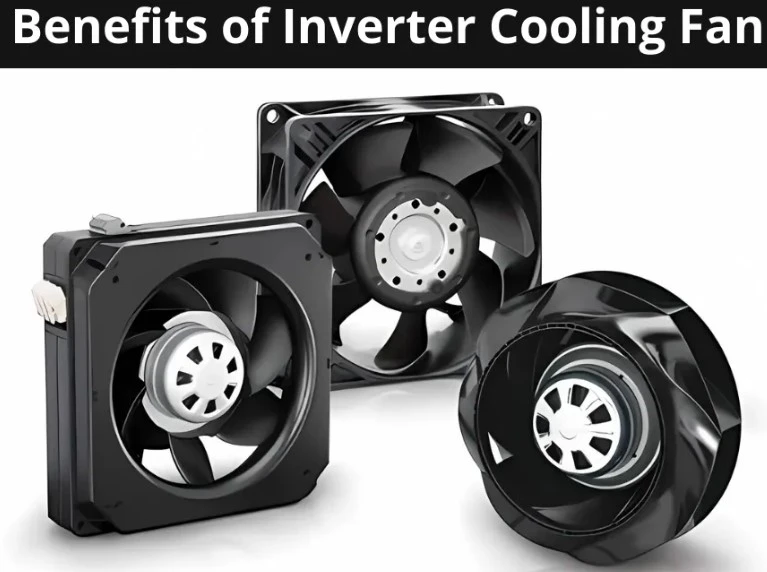

DC Cooling Fan for Frequency Converter and Drive Systems
SZR inverter cooling fans are developed for power conversion equipment requiring efficient airflow management, low motor interference and stable long-duration cooling performance. The fan series improves internal heat dissipation efficiency while supporting reliable operation under fluctuating electrical loads. These products are commonly installed in variable frequency drives, solar inverters, UPS systems and industrial motor controllers.
Product Configuration
The external housing adopts reinforced aluminum alloy construction with protective surface coating for improved corrosion resistance and mechanical durability.
Fan blades are manufactured from high-temperature resistant thermoplastic material to maintain structural balance under continuous operation.
The brushless DC motor incorporates electromagnetic optimization technology to reduce interference with inverter circuitry.
Optimized blade curvature improves airflow concentration and heat transfer efficiency inside compact electrical enclosures.
Technical Specifications
|
Parameter |
IV12038 |
IV17251 |
|
Frame Size |
120×120×38 mm |
172×150×51 mm |
|
Operating Voltage |
24V / 48V DC |
48V DC |
|
Rated Power |
12-24 W |
30-55 W |
|
Speed |
2800-4600 RPM |
2400-3800 RPM |
|
Airflow Capacity |
110-195 CFM |
220-360 CFM |
|
Acoustic Noise |
36-52 dB(A) |
48-62 dB(A) |
|
Bearing Structure |
Ball Bearing |
Ball Bearing |
|
Protection Rating |
IP55 |
IP55 |
|
Operating Temperature |
-20°C to +80°C |
-20°C to +80°C |
|
Control Interface |
PWM Optional |
PWM Optional |
|
Certifications |
CE, RoHS, ISO9001 |
CE, RoHS, ISO9001 |
Operational Features
• Stable cooling for inverter electronics
• Reduced electromagnetic interference characteristics
• Long-life continuous operation capability
• Efficient airflow for confined equipment spaces
• Improved motor heat resistance performance
Application Areas
• Frequency converters
• Solar power inverters
• UPS backup systems
• EV charging equipment
• Motor drive controllers
• Industrial automation systems
• Power conversion cabinets
FAQ
Q: Can the fan operate continuously in inverter cabinets?
A: Yes. The fan is designed for industrial-grade continuous-duty operation.
Q: Does the fan support speed adjustment?
A: Optional PWM speed regulation is available for intelligent cooling management.
Q: What protection level is available?
A: Standard IP55 protection improves resistance to dust and moisture exposure.
Q: Can SZR customize connector types?
A: Customized cable length and connector solutions are available according to project requirements.
Engineering & OEM Support
SZR supports inverter thermal management projects including airflow simulation, EMC optimization, signal integration and customized wiring harness solutions. OEM production and engineering sampling services are available.
