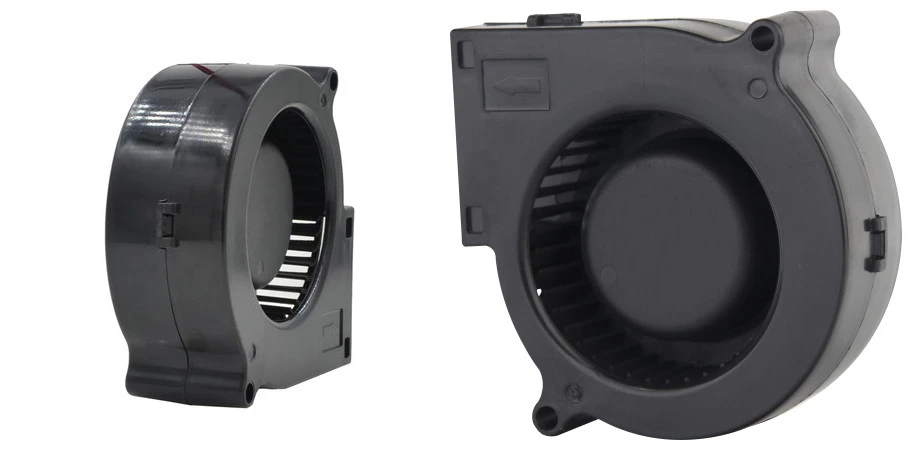

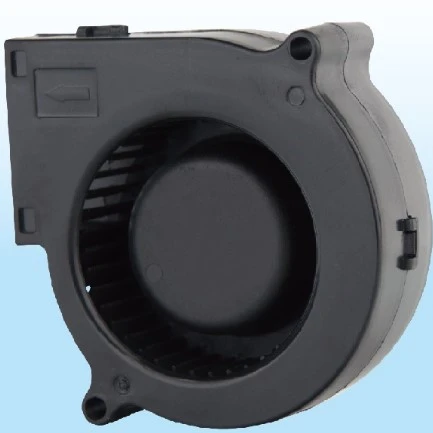

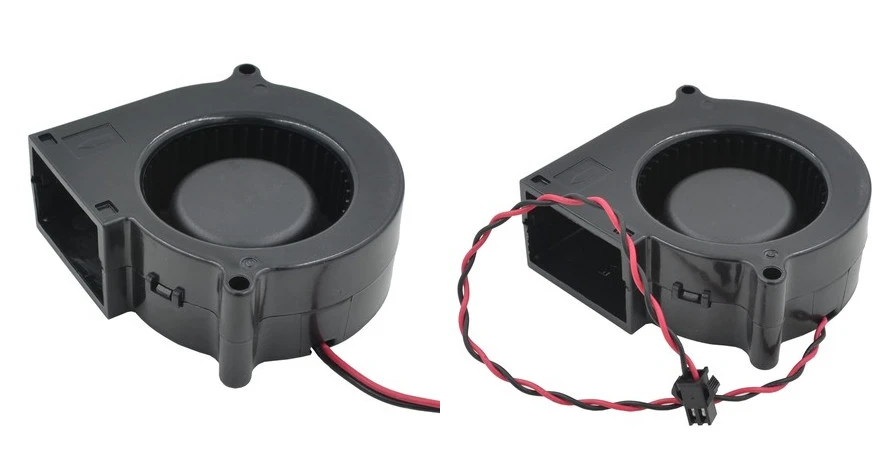

Industrial Centrifugal Cooling Fan for Concentrated Airflow Applications
SZR's High Pressure DC blower series is engineered for thermal systems requiring focused airflow delivery and elevated static pressure performance. The blower structure is suitable for compact ventilation channels, restricted airflow paths and heat-intensive electronic assemblies.
Air Pressure Characteristics
Unlike conventional axial cooling fans, the centrifugal airflow design concentrates air output into narrow channels, improving cooling efficiency inside enclosed equipment structures.
The optimized impeller geometry increases static pressure capability while maintaining stable airflow continuity during long-duration operation. The blower motor adopts brushless DC technology with low power consumption and reliable rotational stability.
12V and 24V DC operating platforms are available for industrial automation and electronic cooling integration.
Structural Design
The housing structure utilizes flame-retardant engineering thermoplastic material with enhanced dimensional stability under elevated temperatures.
The blower wheel is dynamically balanced to minimize vibration during high-speed operation. Internal copper winding and precision bearing configuration improve operational lifespan and reduce maintenance frequency.
Compact outlet positioning supports direct airflow guidance for localized cooling applications.
Specifications
|
Parameter |
HPB7530 |
|
Dimension |
75×75×30 mm |
|
Rated Voltage |
12V / 24V DC |
|
Operating Current |
0.18-0.65 A |
|
Speed |
2500-5200 RPM |
|
Air Flow |
8-22 CFM |
|
Static Pressure |
18-52 mmH₂O |
|
Noise Level |
28-48 dB(A) |
|
Bearing Type |
Hydraulic / Dual Ball Bearing |
|
Insulation Class |
Class B |
|
Protection Level |
IP54 |
|
Material |
PBT Housing + Reinforced Plastic Impeller |
|
Certifications |
CE, RoHS, ISO9001:2015 |
Additional voltage and PWM control versions are available upon request.
Product Features
• High static pressure airflow output
• Brushless DC motor with low thermal loss
• Compact structure for confined installation spaces
• Stable operation under continuous duty conditions
• Optional PWM speed regulation support
• OEM cable and connector customization available
Common Applications
• Laser equipment
• Medical ventilation devices
• Air purification systems
• Industrial cooling modules
• 3D printing equipment
• Battery thermal management systems
• Precision electronic instruments
Engineering Recommendations
• Dual ball bearing configuration is preferred for high-temperature environments.
• Proper duct sealing improves pressure transmission efficiency.
• PWM speed adjustment can optimize acoustic performance under variable workloads.
Technical Support
SZR provides airflow simulation assistance, blower selection guidance and customized thermal management solutions for industrial cooling projects worldwide.
