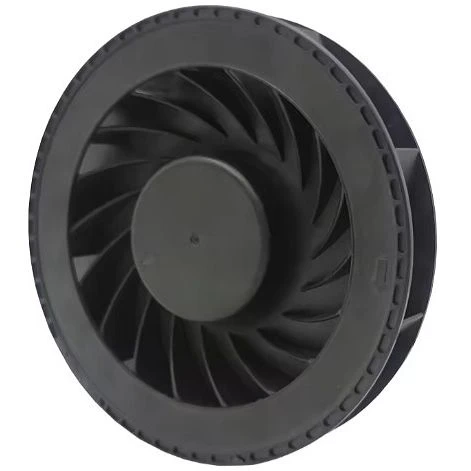

Powerful Static Pressure Solution for Restricted Airflow Systems
SZR high pressure DC centrifugal fans are specifically developed for equipment requiring concentrated airflow delivery through narrow ducts, dense filters or high-resistance ventilation paths. The blower system combines powerful static pressure output with stable long-term operating performance.
Pressure-Oriented Design
The fan adopts a reinforced metal housing structure combined with a high-strength centrifugal impeller to improve pressure generation efficiency. Optimized airflow channels help reduce leakage loss and improve airflow concentration through restrictive systems.
The brushless motor system supports stable torque output under heavy pressure loads and maintains consistent ventilation performance during continuous operation.
Technical Specifications
|
Parameter |
Specification |
|
Available Sizes |
120-225 mm |
|
Voltage Options |
24V / 48V DC |
|
Speed Range |
2200-4200 RPM |
|
Airflow Capacity |
90-380 CFM |
|
Maximum Static Pressure |
6.0-12.5 inch-H2O |
|
Noise Level |
45-72 dB(A) |
|
Bearing Structure |
Dual Ball Bearing |
|
Motor Type |
High Torque Brushless Motor |
|
Protection Functions |
Overload / Locked Rotor Protection |
|
Working Temperature |
-25°C to +85°C |
|
Frame Material |
Reinforced Metal Housing |
|
Impeller Material |
High-Strength PBT |
|
Protection Grade |
IP55-IP68 Optional |
|
Certifications |
CE, RoHS, UL, ISO9001 |
Key Characteristics
• Strong static pressure performance
• Suitable for restrictive airflow channels
• Stable airflow under heavy resistance
• Reliable continuous-duty operation
• Durable high-torque motor configuration
• Flexible intelligent control options available
Major Applications
• Filter systems
• Industrial dust collectors
• Fuel cell cooling systems
• High-density server cooling
• Air duct ventilation equipment
• Medical purification systems
• Industrial drying equipment
Technical FAQ
Q: What makes this fan suitable for high-pressure systems?
A: The optimized centrifugal impeller and high-torque motor improve static pressure generation.
Q: Is PWM control available?
A: Yes. PWM speed regulation and monitoring functions are optional.
Q: Can the fan operate in dusty environments?
A: Optional IP68 protection supports harsh industrial environments.
Q: Does SZR provide customized pressure solutions?
A: Customized airflow and pressure optimization services are available for OEM projects.
Project Support
SZR offers customized high-pressure centrifugal fan solutions including engineering consultation, rapid sampling and OEM manufacturing support for industrial thermal management applications.
