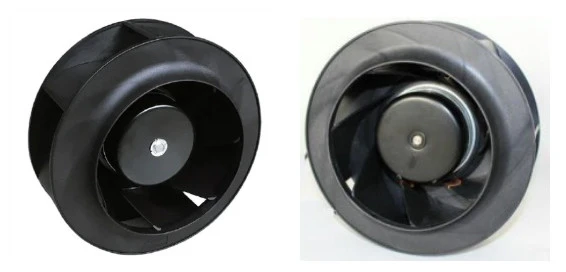

Large-Airflow Cooling Solution for Heavy-Duty Equipment

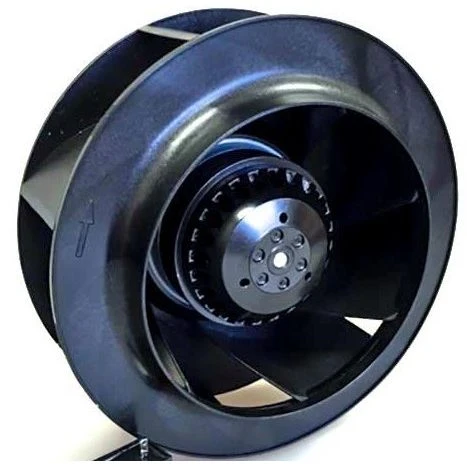

SZR 225mm DC centrifugal fans are developed for large-scale thermal management systems requiring high airflow capacity and stable pressure output. The blower design supports industrial ventilation environments where continuous heat extraction and durable operation are essential.
Structural Composition
The housing adopts reinforced metal construction with anti-corrosion coating treatment for improved mechanical strength. The fan wheel is formed from durable flame-retardant engineering polymer material to ensure balanced high-speed performance.
Its optimized centrifugal air channel structure improves airflow concentration while reducing internal resistance. The motor assembly incorporates precision balancing technology to maintain smooth and stable operation under heavy-duty workloads.
Technical Specifications
|
Parameter |
Specification |
|
Overall Dimension |
225×225×80 mm |
|
Input Voltage |
24V / 48V DC |
|
Speed |
1500-2800 RPM |
|
Airflow Output |
220-420 CFM |
|
Static Pressure |
4.5-8.5 inch-H2O |
|
Noise Rating |
48-68 dB(A) |
|
Bearing Type |
Maintenance-Free Ball Bearing |
|
Motor Protection |
Overcurrent Protection |
|
Temperature Resistance |
-25°C to +85°C |
|
Housing Material |
Metal Alloy |
|
Blade Material |
Fire-Retardant PBT |
|
Protection Class |
IP55 / IP67 Optional |
|
Certifications |
CE, RoHS, ISO9001, UL |
Performance Benefits
• High airflow capacity for industrial cooling
• Strong pressure performance for duct ventilation
• Stable operation in high-temperature environments
• Durable motor structure for continuous service
• Reduced maintenance requirements
• Optional PWM and sensor monitoring functions
Application Areas
• Energy storage systems
• Industrial ventilation equipment
• Data center cooling
• Large electrical cabinets
• EV charging infrastructure
• Air handling systems
• Heavy industrial machinery
Common Questions
Q: Is the fan suitable for high-temperature environments?
A: Yes. The motor structure supports operation up to +85°C.
Q: Can the airflow direction be customized?
A: Customized outlet direction and mounting configurations are available.
Q: Is speed monitoring supported?
A: Optional tachometer output is available for monitoring applications.
Q: Does SZR support OEM branding?
A: Yes. Logo printing and customized packaging services are available.
OEM Service Support
SZR provides project-based centrifugal cooling solutions including customized mechanical structures, electrical specifications and rapid production support for industrial customers.
