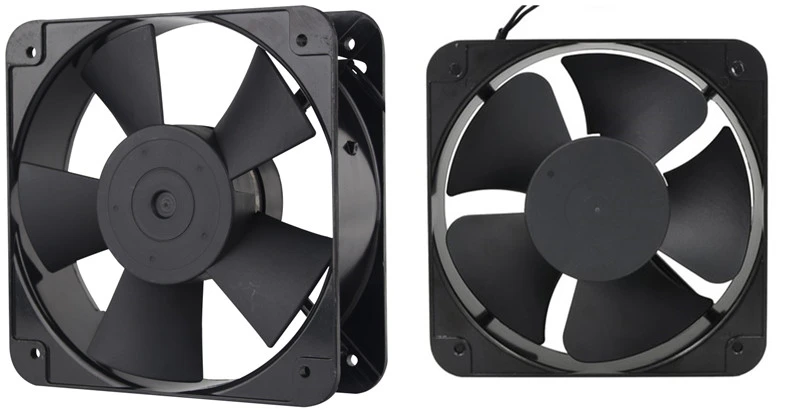

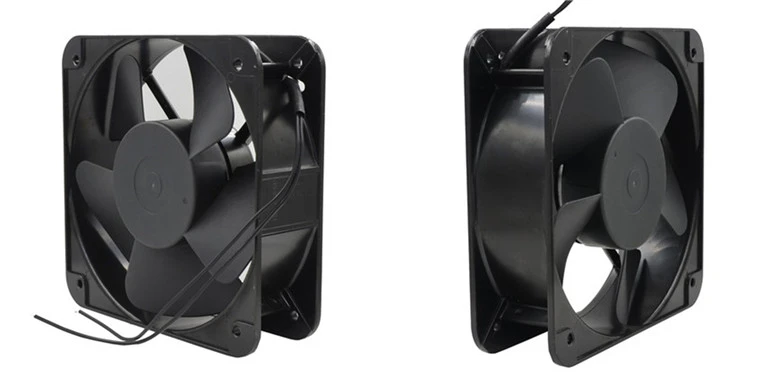

Large Air Volume Cooling Fan for Industrial Ventilation

The SZR 20060 AC axial fan is designed for applications requiring rapid heat extraction and high-volume air circulation. Its oversized structure supports strong airflow generation for industrial ventilation systems and thermal management equipment.

Airflow Design

Using a 200×200×60mm configuration, the fan achieves high ventilation efficiency for machinery producing concentrated heat loads.

The capacitor-run induction motor maintains stable rotational performance while reducing electrical energy loss during operation.

The aluminum frame includes corrosion-resistant treatment for demanding environments.

Mechanical Structure

The impeller is manufactured from UL94V-0 flame-retardant engineering plastic for improved safety and structural stability.

Ball bearing support enables long operating cycles in industrial applications.

Product Specifications

Parameter	20060
Dimension	200×200×60 mm
Voltage	100/125V/200/240V AC
Frequency	50/60 Hz
Speed	2500-2700 RPM
Air Flow	400-480 CFM
Noise	62-68 dB(A)
Bearing	Ball Bearing
Motor Type	Capacitor-Run Induction Motor
Material	UL94V-0 PBT Impeller + Aluminum Frame
Operating Temperature	-10℃~+85℃
Certifications	ISO9001:2015, CE, RoHS, ATL Salt Spray Test Report, IAF, RBT, IP68 Test Report/Certificate
Weight	1700g
