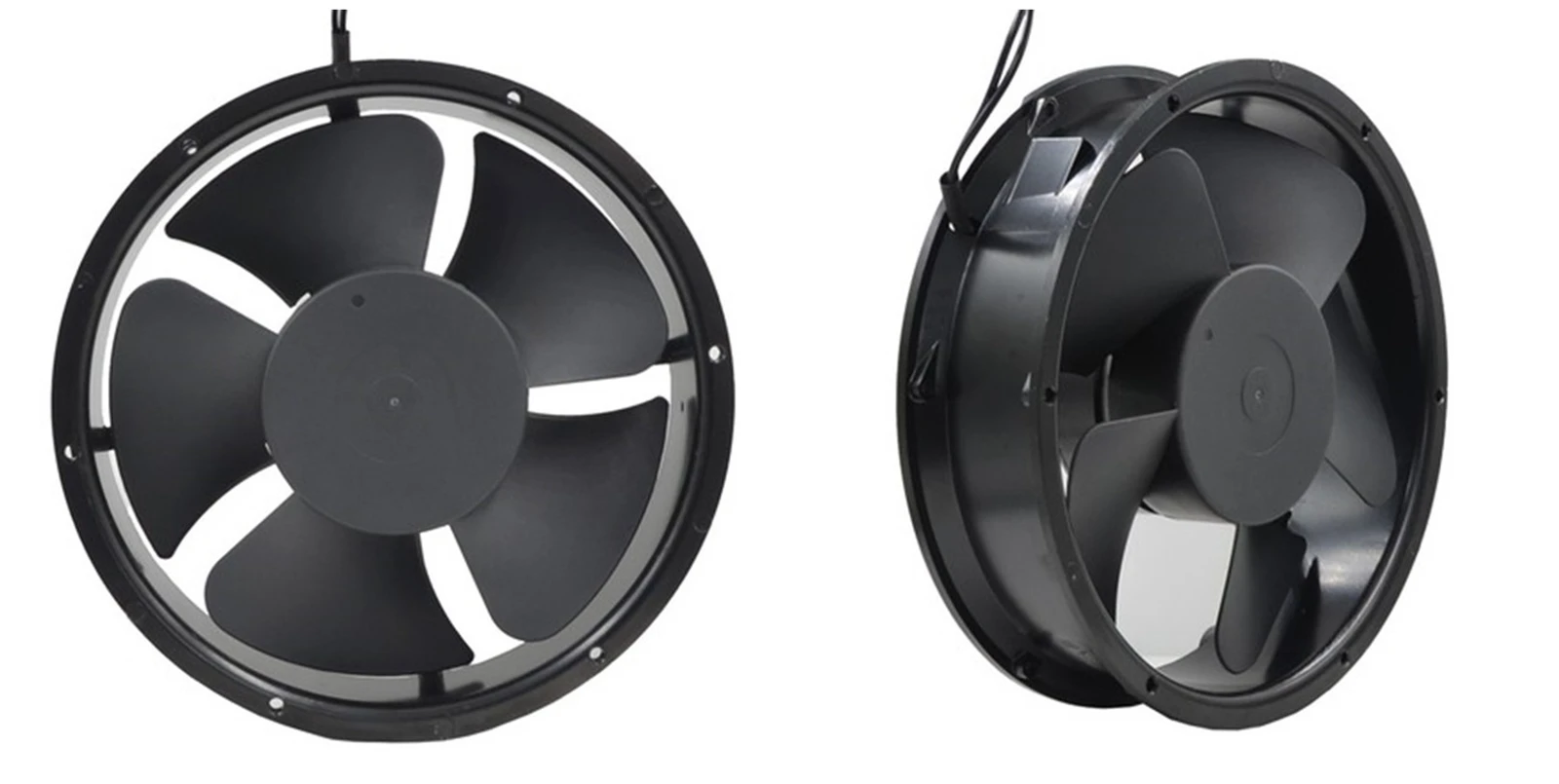

Circular Industrial Ventilation Fan for HVAC Systems

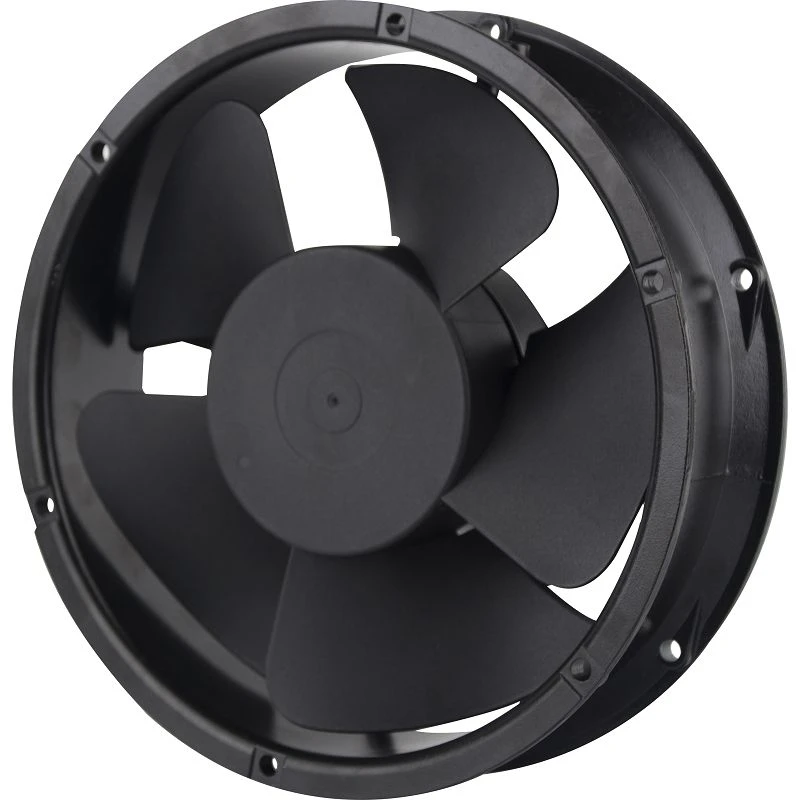

The 22060 AC axial fan from SZR is specially developed for large-scale airflow management and HVAC ventilation applications. Its circular structure improves air distribution efficiency in duct systems and industrial ventilation equipment.
Ventilation Characteristics

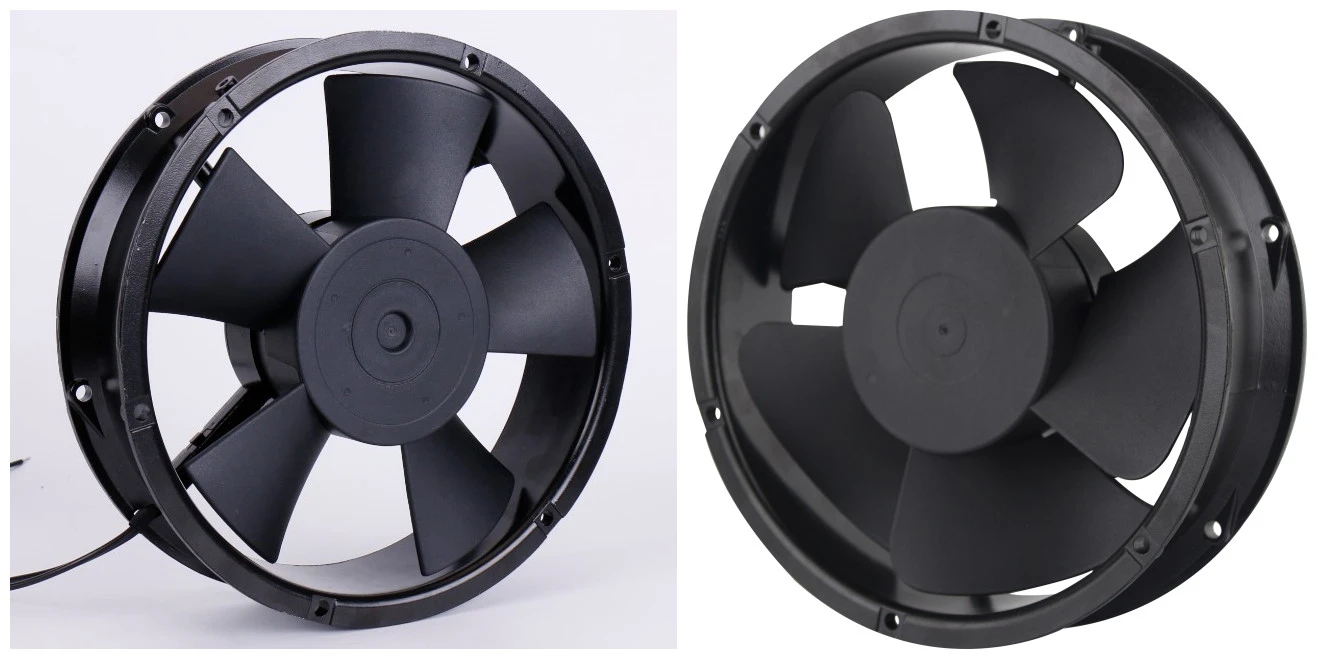

Unlike traditional square-frame fans, the round-frame structure allows smoother air transition and more uniform airflow movement through ventilation channels.
The fan uses an aerodynamic impeller profile to improve airflow consistency while reducing turbulence.
Material & Motor Design
The housing adopts corrosion-resistant aluminum alloy construction combined with flame-retardant thermoplastic blades.
Its capacitor-run induction motor operates with multiple industrial AC voltage systems including 100V, 125V, 200V, 240V and 380V AC.
Technical Information
|
Parameter |
22060 |
|
Dimension |
220×60mm (Circular) |
|
Voltage |
100/125V/200/240V/380/420V AC |
|
Frequency |
50/60 Hz |
|
Speed |
2500-2700 RPM |
|
Air Flow |
400-480 CFM |
|
Noise |
62-68 dB(A) |
|
Bearing |
High-Grade Ball Bearing |
|
Motor Type |
Capacitor-Run Induction Motor |
|
Material |
Flame-Retardant PBT + Aluminum Alloy |
|
Operating Temperature |
-10℃~+85℃ |
|
Certifications |
ISO9001:2015, CE, RoHS, ATL Salt Spray Test Report, IAF, RBT, IP68 Test Report/Certificate |
|
Weight |
1350g |
Product Features
● Circular airflow structure
● Broad industrial voltage support
● Reliable continuous ventilation
● Dust and humidity resistance
● Flexible mounting arrangement
Application Environments
HVAC systems
Air handling equipment
Industrial generators
Factory ventilation systems
Electrical control rooms
Server cooling environments
Additional Notes
Customized branding, labels and packaging solutions are available for OEM and distributor projects.
