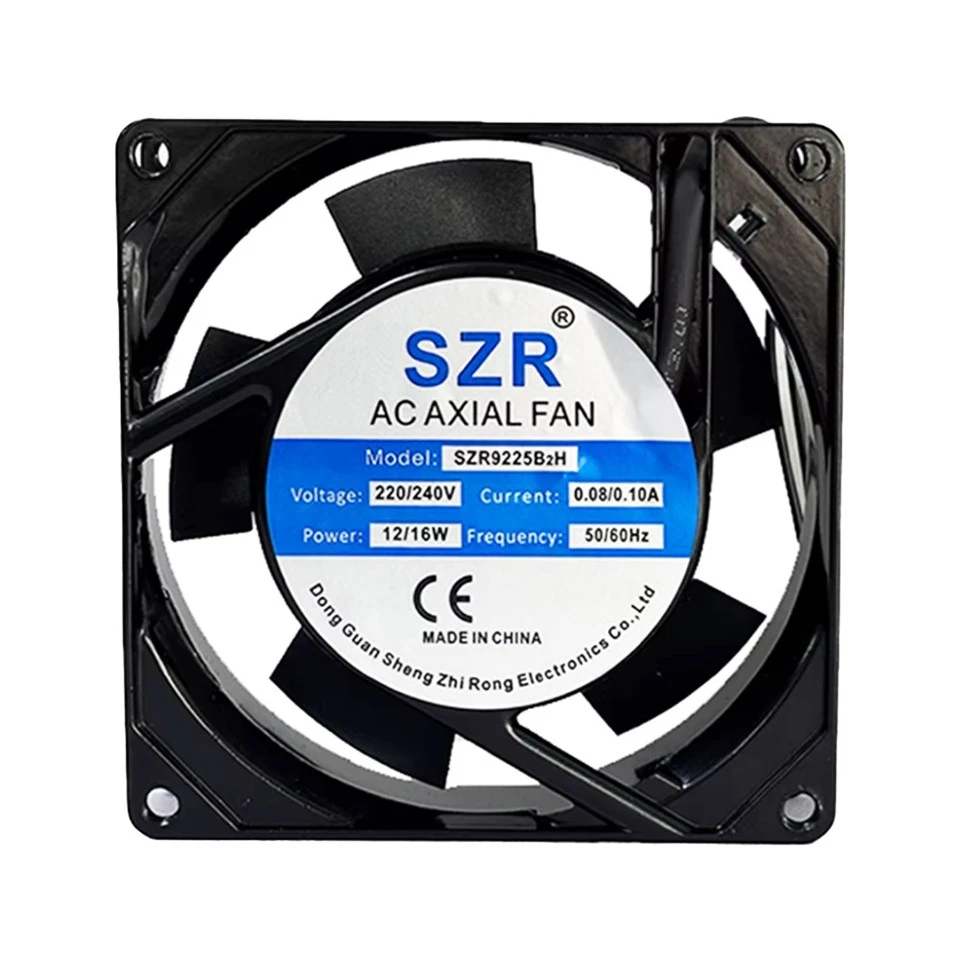

Industrial Ventilation Fan for Medium-Power Equipment

Designed for industrial ventilation systems, SZR's 92mm AC axial fan series achieves an effective balance between airflow performance and installation flexibility. The fan is widely integrated into automation systems, power equipment and electrical control assemblies.

Ventilation Performance

Compared with smaller cooling fans, the 92mm structure generates stronger airflow while maintaining moderate acoustic levels.

The 9225 version is commonly selected for standard ventilation requirements, whereas the 9238 configuration improves static pressure performance for enclosed industrial systems.

The motor structure uses high-efficiency copper winding technology compatible with both 50Hz and 60Hz electrical networks.

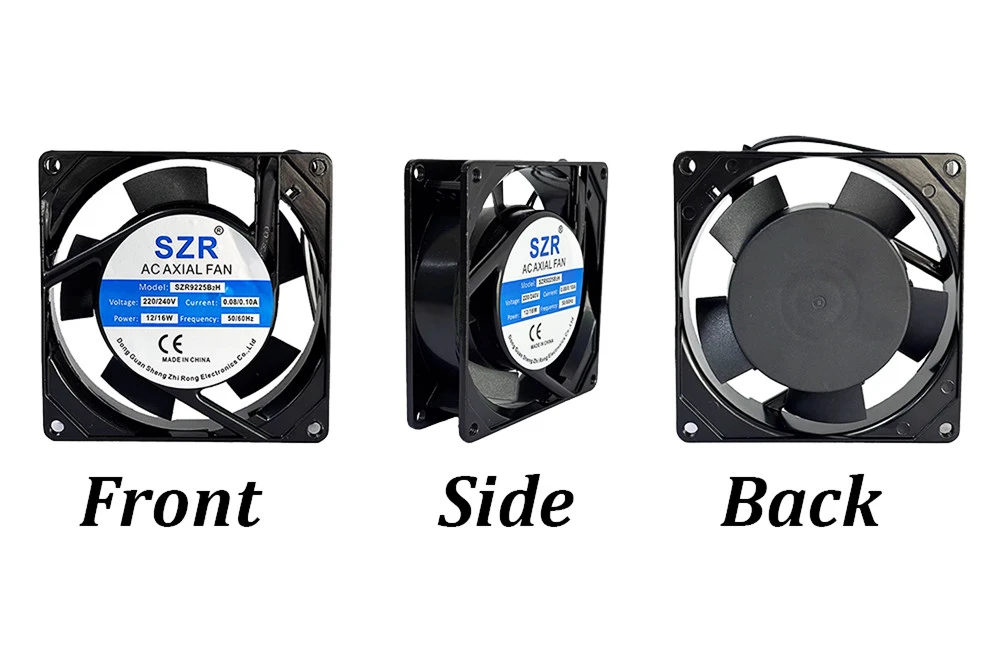

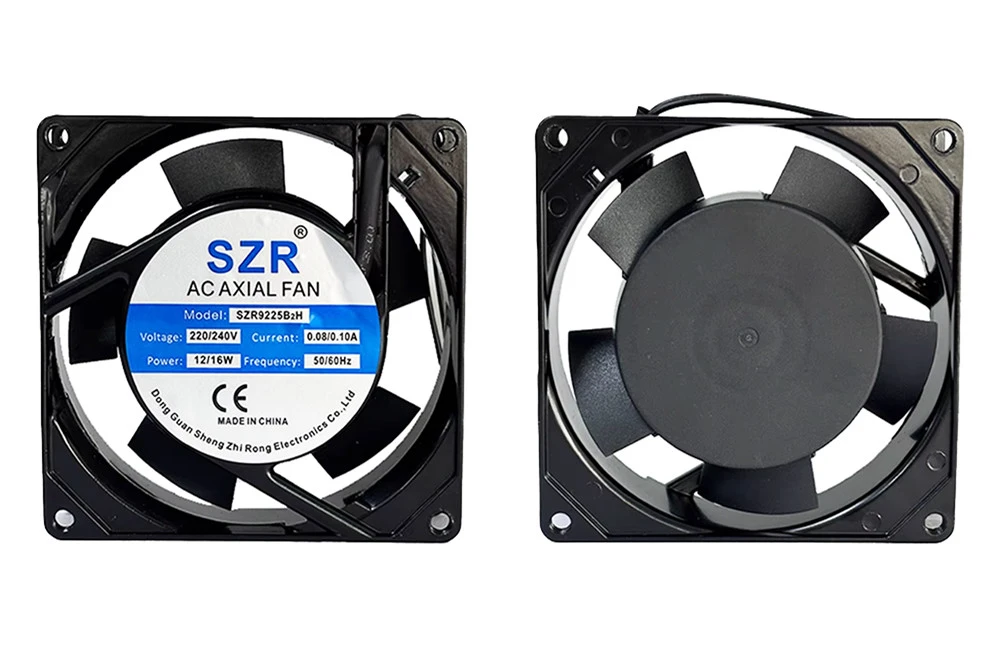

Product Construction

The impeller adopts reinforced engineering thermoplastic material to improve structural rigidity during high-speed operation. The aluminum frame enhances vibration resistance and mechanical durability.

Multiple mounting options simplify installation in industrial cabinets and ventilation systems.

Technical Specifications

Parameter	9225
Dimension	92×92×25 mm
Voltage	110V/220V AC
Frequency	50/60 Hz
Speed	1800-2700 RPM
Air Flow	23-37 CFM
Noise	23-40 dB(A)
Bearing	Sleeve / Ball Bearing
Protection	IP65
Material	Reinforced PBT Blade + Aluminum Frame
Certifications	ISO9001:2015, CE, RoHS, ATL Salt Spray Test Report, IAF, RBT, IP68 Test Report/Certificate
