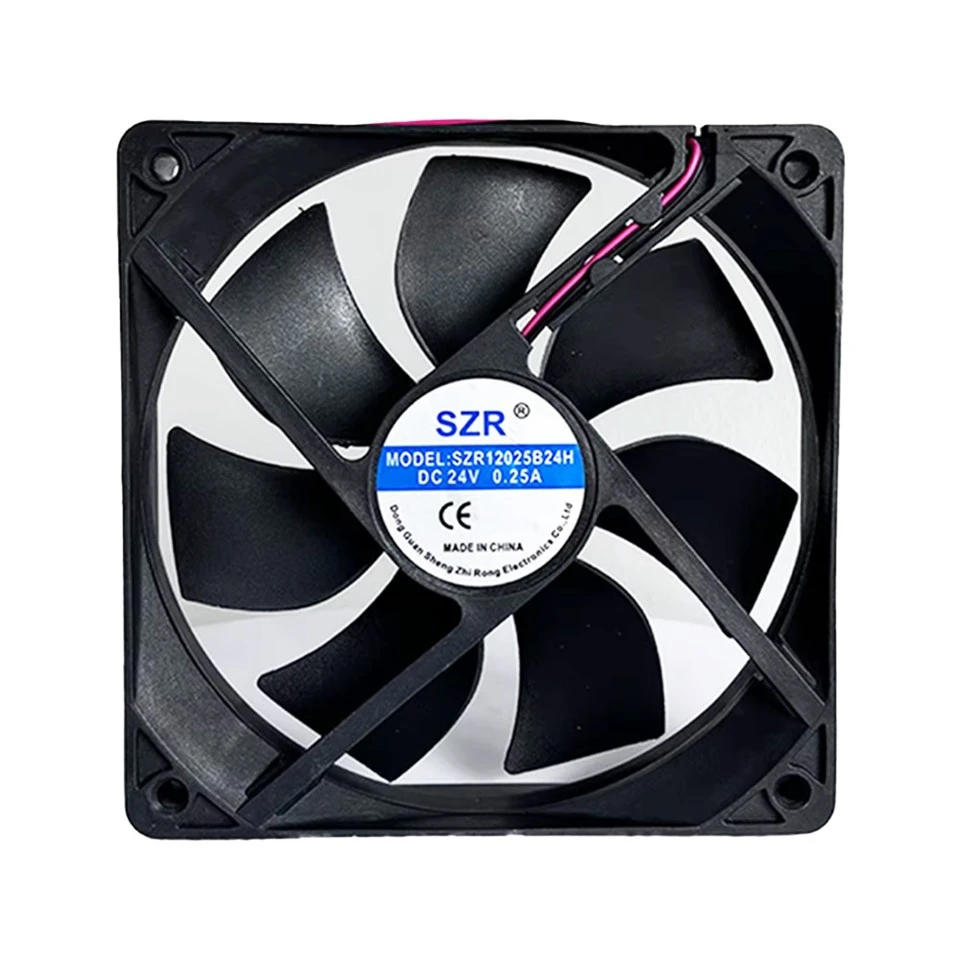

Custom DC Cooling Fan for Intelligent Electronic Thermal Control
SZR's DC fan custom design series provides flexible cooling solutions for electronic equipment requiring adjustable airflow performance, intelligent control integration and compact mechanical structures. The brushless DC motor platform enables efficient power utilization while supporting multiple control and monitoring functions. These customized DC fans are suitable for networking devices, industrial electronics, automotive systems and embedded equipment.

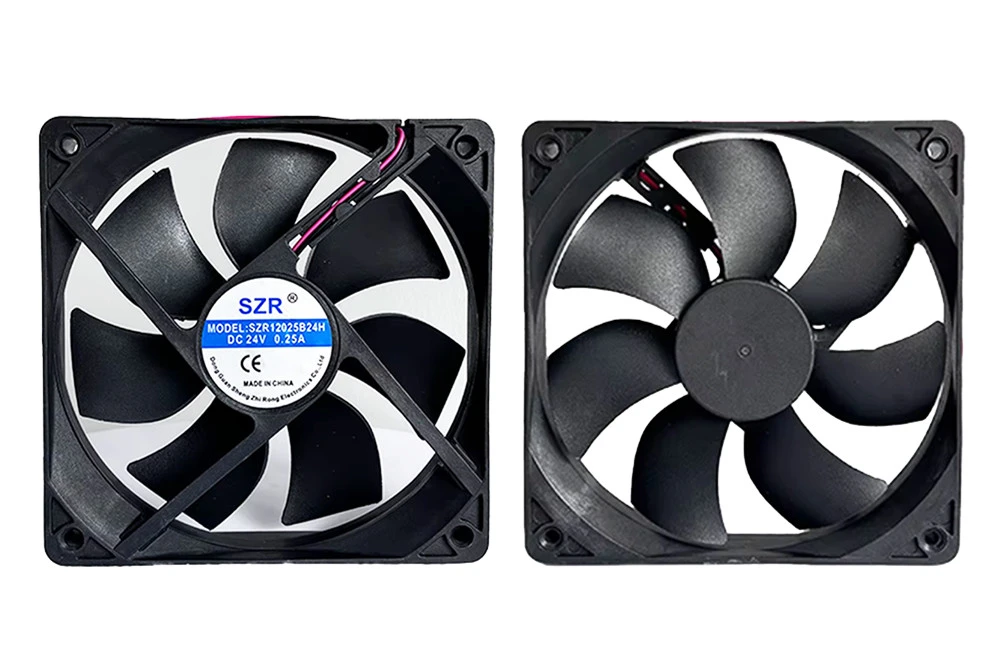

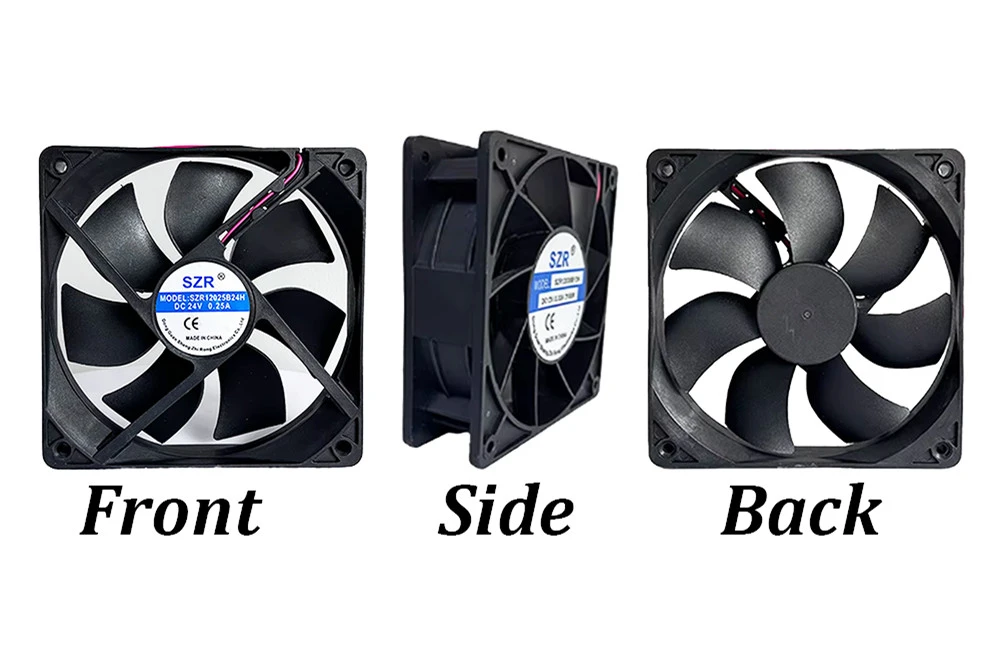

Product Construction
The fan housing utilizes precision-molded engineering material or aluminum alloy construction depending on application requirements.
Blade designs can be optimized for low-noise airflow, high-pressure cooling or compact thermal channel applications.
Brushless DC motor systems integrate optional PWM control, tachometer output and locked-rotor protection functions.
Customized wiring, connectors and control interfaces simplify integration into intelligent electronic systems.
Technical Specifications
|
Parameter |
DCF 6025 |
DCF 12025 |
|
Dimension |
60×60×25 mm |
120×120×25 mm |
|
Rated Voltage |
5V / 12V DC |
12V / 24V DC |
|
Power Consumption |
2-8 W |
5-22 W |
|
Speed Range |
3000-8500 RPM |
1800-5200 RPM |
|
Air Volume |
15-52 CFM |
65-185 CFM |
|
Noise Level |
22-45 dB(A) |
28-52 dB(A) |
|
Bearing Type |
Sleeve / Ball Bearing |
Ball Bearing |
|
Protection Grade |
IP44-IP65 |
IP54-IP67 |
|
Operating Temperature |
-10°C to +70°C |
-20°C to +80°C |
|
Signal Function |
PWM / FG Optional |
PWM / FG / RD Optional |
|
Certifications |
CE, RoHS |
CE, RoHS, UL |
Operational Advantages
• Intelligent DC motor control capability
• Flexible low-power cooling solutions
• Compact structure for electronic devices
• Multiple signal monitoring functions
• Optimized efficiency and thermal performance
Typical Installation Areas
• Embedded computing systems
• Automotive electronics
• Security monitoring devices
• Communication terminals
• Smart home equipment
• Portable medical devices
• Power supply modules
FAQ
Q: Can the fan support automatic speed control?
A: Yes. PWM intelligent speed adjustment is available for thermal management systems.
Q: Is low-power operation supported?
A: Brushless DC motors provide efficient operation with reduced energy consumption.
Q: Can connector types be customized?
A: Various terminal and connector configurations can be customized.
Q: Does SZR support compact fan development?
A: Miniature DC fan customization services are available for space-limited applications.
Engineering & OEM Service
SZR supports customized DC fan development including motor tuning, airflow simulation, signal integration and compact structural optimization for electronic cooling projects.
