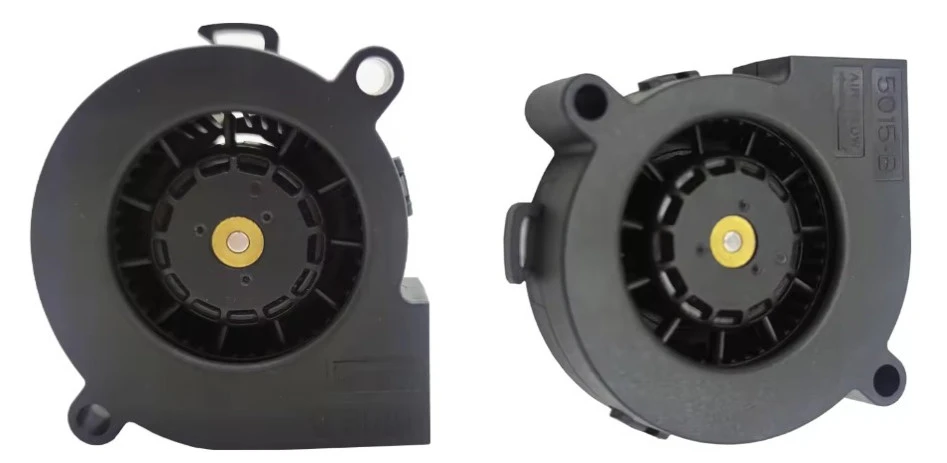

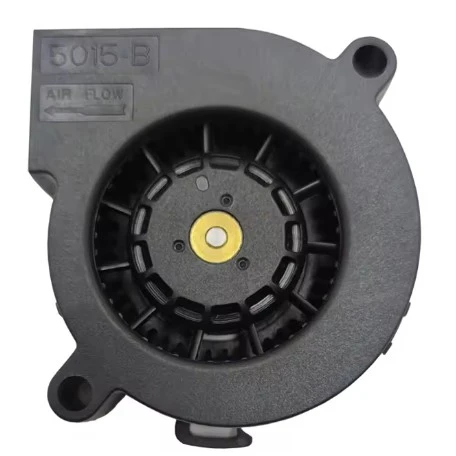

Compact DC Cooling Blower for Electronic Equipment
SZR's 12V mini blower fan series is developed for compact electronic products requiring localized heat dissipation and low-profile airflow management. The miniature centrifugal structure allows efficient cooling performance within limited installation spaces.
Cooling Efficiency
The blower adopts a concentrated airflow pathway capable of directing air toward targeted heat sources including IC modules, compact power supplies and embedded control boards.
Compared with small axial fans, the blower configuration delivers improved airflow penetration inside restricted electronic assemblies. The brushless DC motor maintains stable rotational performance with reduced electromagnetic interference.
The 12V DC design supports compatibility with various low-voltage electronic systems.

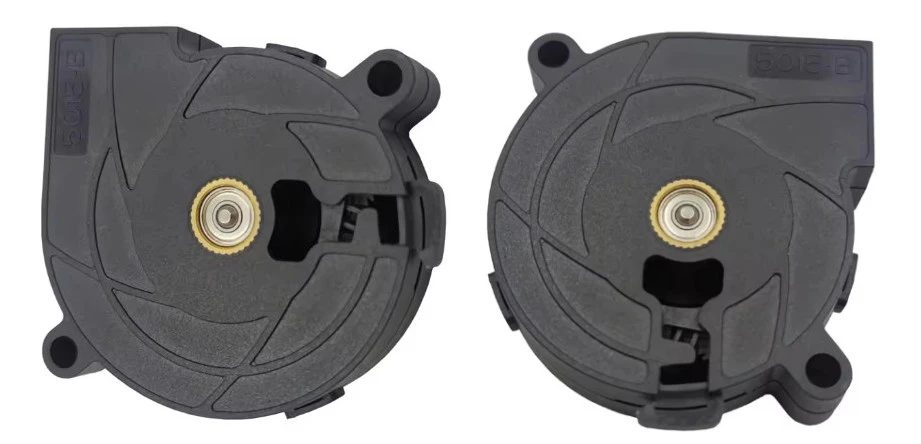

Mechanical Configuration
The fan casing is manufactured from durable thermoplastic material with strong heat resistance and dimensional consistency.
A lightweight impeller structure contributes to smooth startup behavior and balanced air circulation. Precision bearing technology improves operational durability during extended running cycles.
Wire length, terminal type and speed control functions can be customized for OEM integration.
Specifications
|
Parameter |
MBF5015 |
|
Dimension |
50×50×15 mm |
|
Voltage |
12V DC |
|
Current |
0.08-0.30 A |
|
Speed |
3000-6500 RPM |
|
Air Flow |
3.5-10.8 CFM |
|
Static Pressure |
6-21 mmH₂O |
|
Noise |
20-36 dB(A) |
|
Bearing |
Sleeve / Ball Bearing |
|
Life Expectancy |
30,000-50,000 Hours |
|
Protection |
IP52 |
|
Material |
PBT Frame + Plastic Centrifugal Blade |
|
Certifications |
CE, RoHS, ISO9001 |
Higher-speed and tachometer signal versions are optional.
Product Benefits
• Compact dimensions for space-limited devices
• Focused airflow distribution
• Low power consumption operation
• Quiet running performance
• Flexible mounting orientation
• Suitable for continuous electronic cooling
Typical Applications
• Mini projectors
• Smart home devices
• Portable electronics
• LED lighting systems
• Network communication modules
• Small power adapters
• Embedded control equipment
Installation Suggestions
• Maintain adequate inlet clearance for stable airflow intake.
• Ball bearing versions are recommended for long-term operation.
• Avoid airflow blockage near the blower outlet section.
Technical Service
SZR offers OEM development support including connector configuration, voltage adaptation and thermal performance optimization for compact electronic cooling applications.
